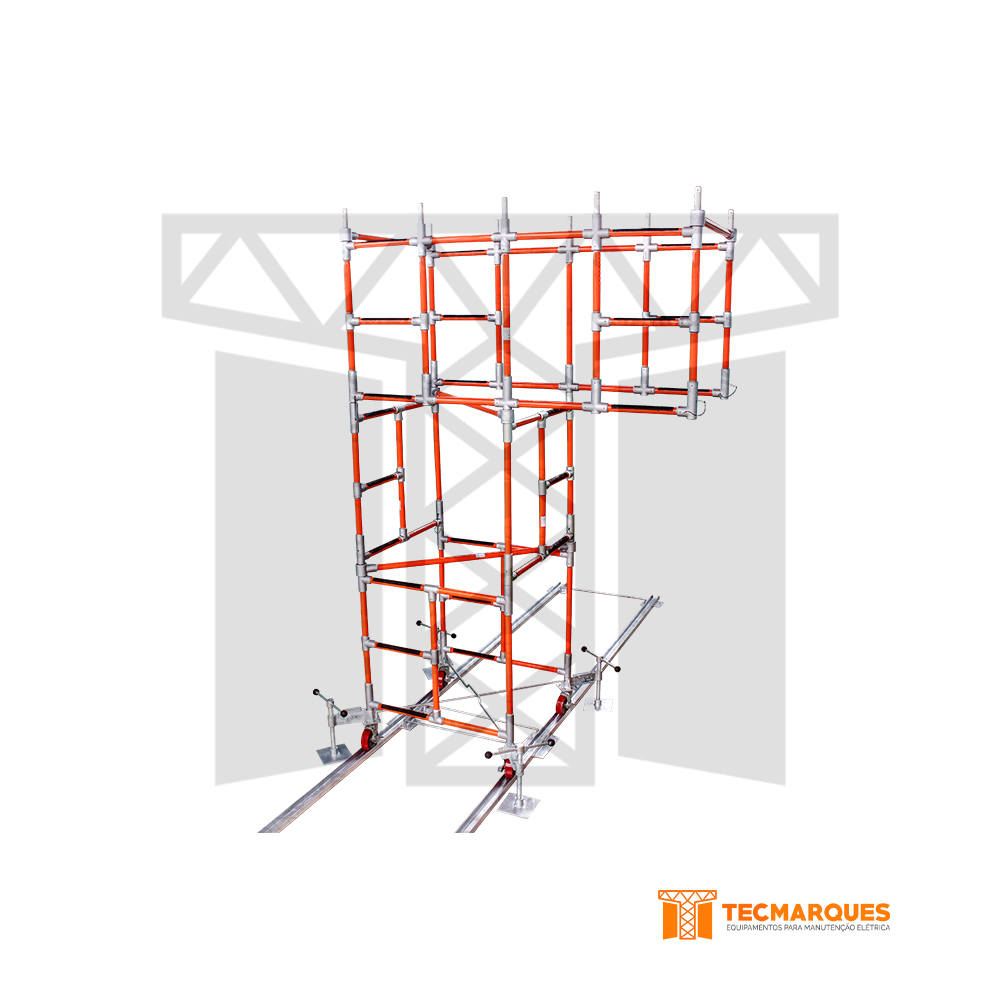

Insulated Modular Scaffold
Maximum safety for high-voltage operations
The Insulated Modular Scaffold was designed for high-voltage operations, providing maximum safety and ample working space. With a robust platform and interchangeable components, it adapts perfectly to your needs, ensuring that every task is performed with precision and protection.
Robust components
Scaffold modules
The scaffold modules are designed with Ø 38 mm fiberglass tubes and cast aluminum fittings reinforced with steel. This combination provides a safe and durable structure, ensuring that you can work with complete confidence, even under the most challenging conditions.
| Reference | Description | Approx. Weight | |
| Kg | lb | ||
| TM06080301 | Module 0,5 x 1,0 m | 3,50 | 7,72 |
| TM06080101 | Module 1,0 x 1,0 m | 7,00 | 15,43 |
| – | Module 1,5 x 1,0 m | 10,30 | 22,71 |
| TM06080102 | Module 2,0 x 1,0 m | 12,20 | 26,90 |

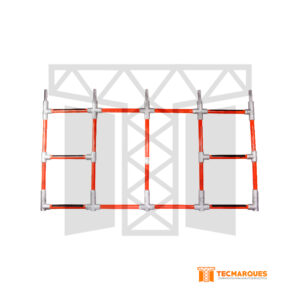

| TM06080103 | Module 2,0 x 1,0 m w/ 5 pins | 13,60 | 29,98 |
| TM06080201 | Module 1,0 x 1,2 m – Guardrail | 8,30 | 18,30 |
| TM06080202 | Module 2,0 x 1,2 m – Guardrail | 13,80 | 30,42 |
TM06080301

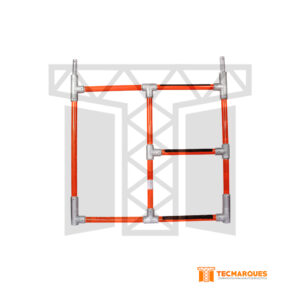

Modules 1,0 x 1,0 m
TM06080301

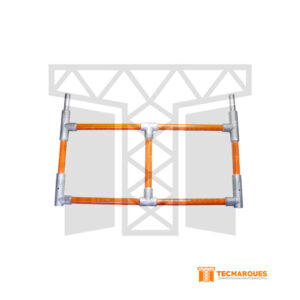

Modules 0,5 x 1,0 m
TM06080301
Modules 2,0 x 1,0 m
TM06080106
Diagonal Crossbar
TM06080104
Lateral Crossbars
Stability that makes the difference.
Robust crossbars for complete safety.
Our scaffold crossbars are essential for providing lateral and diagonal bracing for the insulated modular scaffold. Combining fiberglass tubes with steel-reinforced fittings, they provide reliable support that keeps the entire structure stable and ready for work.
| Reference | Length (mm) | Approx. Weight | |
| Kg | lb | ||
| TM06080106 | 1410 | 1,50 | 3,31 |
| – | 1605 | 1,60 | 3,53 |
| – | 1800 | 1,70 | 3,75 |
| TM06080107 | 2200 | 2,00 | 4,41 |
| TM06080108 | 2820 | 2,40 | 5,29 |
| Reference | Length (mm) | Complement | Approx. Weight | |
| Kg | lb | |||
| TM06080104 | 1000 | – | 0,89 | 1,96 |
| – | 1500 | – | 1,55 | 3,42 |
| TM06080105 | 2000 | – | 2,20 | 4,84 |
| – | 1000 | With collar Ø 38 mm | 2,30 | 5,07 |
| TM06080205 | 1000 | Guardrail | 0,89 | 1,96 |
| TM06080203 | 2000 | Intermediate | 2,90 | 6,39 |
Stability that makes the difference.
Scaffold platforms
Our scaffold crossbars are essential for providing lateral and diagonal bracing for the insulated modular scaffold. Combining fiberglass tubes with steel-reinforced fittings, they provide reliable support that keeps the entire structure stable and ready for work.
| Reference | No. of Planks | Overall Dimension | Approx. Weight | |
| Kg | lb | |||
| TM06080301 | 2 | 1,0 x 1,0 m | 13,20 | 29,10 |
| – | 3 | 1,5 x 1,0 m | 19,80 | 43,65 |
| TM06080109 | 4 | 2,0 x 1,0 m | 26,40 | 58,20 |
TM06080301
Scaffold Platform
TM06080109
Scaffold Platform
TM06080310

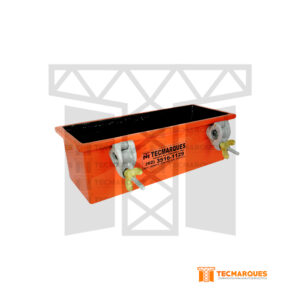

Tool Basket
Keep your tools accessible and protected.
Tool Basket
Designed to be securely attached to the scaffold module, the tool basket provides a practical solution for storing your tools during maintenance operations. Made from durable fiberglass, it keeps your equipment within easy reach and properly protected at all times.
| Reference | Approx. Weight | |
| Kg | lb | |
| 29,10 | ||
| TM06080310 | 4,90 | 10,80 |
Reliability in every movement
Scaffold rails
Featuring three pairs of 2.0 m hot-dip galvanized carbon steel rails, the scaffold rails are the right choice for moving your structure across uneven terrain. Designed to withstand everyday challenges, they provide mobility and durability under any working conditions.
| Reference | Description | Approx. Weight | |
| Kg | lb | ||
| TM06080118 | 6m rail for scaffolding base 1,0 x 1,0 m | 103,10 | 227,30 |
| TM06080119 | 6m rail for scaffolding base 2,0 x 2,0 m | 103,10 | 227,30 |
-
Scaffold rails
-
Scaffold rails
TM06080114
Stabilizing Feet
Extra stability for maximum safety
Stabilizing Feet
| Reference | Description | Approx. Weight | |
| Kg | lb | ||
| TM06080114 | Stabilizing shoe, without caster, for scaffolding 1,0 x 1,0 m | 4,37 | 9,63 |
| – | Stabilizing shoe, without caster, for scaffolding 2,0 x 2,0 m | 4,37 | 9,63 |
| TM06080115 | Stabilizing shoe, with caster, for scaffolding 1,0 x 1,0 m | 16,00 | 35,27 |
| TM06080117 | Stabilizing shoe, with caster, for scaffolding 2,0 x 2,0 m | 16,00 | 35,27 |
Sales and rental tailored to your needs.
Renting the Insulated Modular Scaffold allows you to carry out projects safely and efficiently without compromising your budget. With a locking system and interchangeable components, it offers the perfect solution for your high-voltage operations.
Ideal Configuration.
Total Safety.
Customized suggestions for every project
Our suggested configurations for the Insulated Modular Scaffold ensure safety and efficiency. With customizable setups, you can adapt the system to your project’s requirements, ensuring maximum performance and protection in high-voltage operations.
| Height (mm) | Module 2m | Module 1m | Diagonal Brace | Side Brace | Platform | Shoe | Toe board | String insulating separator | Rope (mm) |
| 5000 | 02 | 08 | 04 | 04 | 01 | 04 | 01 | 04 | 50 |
| 6000 | 02 | 10 | 05 | 04 | 01 | 04 | 01 | 04 | 50 |
| 7000 | 02 | 12 | 06 | 04 | 01 | 04 | 01 | 06 | 80 |
| 8000 | 02 | 14 | 07 | 04 | 01 | 04 | 01 | 06 | 100 |
| 9000 | 02 | 16 | 08 | 04 | 01 | 04 | 01 | 06 | 100 |
| 10000 | 02 | 18 | 09 | 04 | 01 | 04 | 01 | 08 | 100 |
| 11000 | 02 | 20 | 10 | 04 | 01 | 04 | 01 | 08 | 100 |
| 12000 | 02 | 22 | 11 | 04 | 01 | 04 | 01 | 08 | 100 |
| 13000 | 02 | 24 | 12 | 04 | 01 | 04 | 01 | 08 | 100 |
| 14000 | 02 | 26 | 13 | 04 | 01 | 04 | 01 | 10 | 120 |
| 15000 | 02 | 28 | 14 | 04 | 01 | 04 | 01 | 10 | 120 |
