Clamp (C-type) for Use in Substations
Clamp (C-type) for Use in Substations

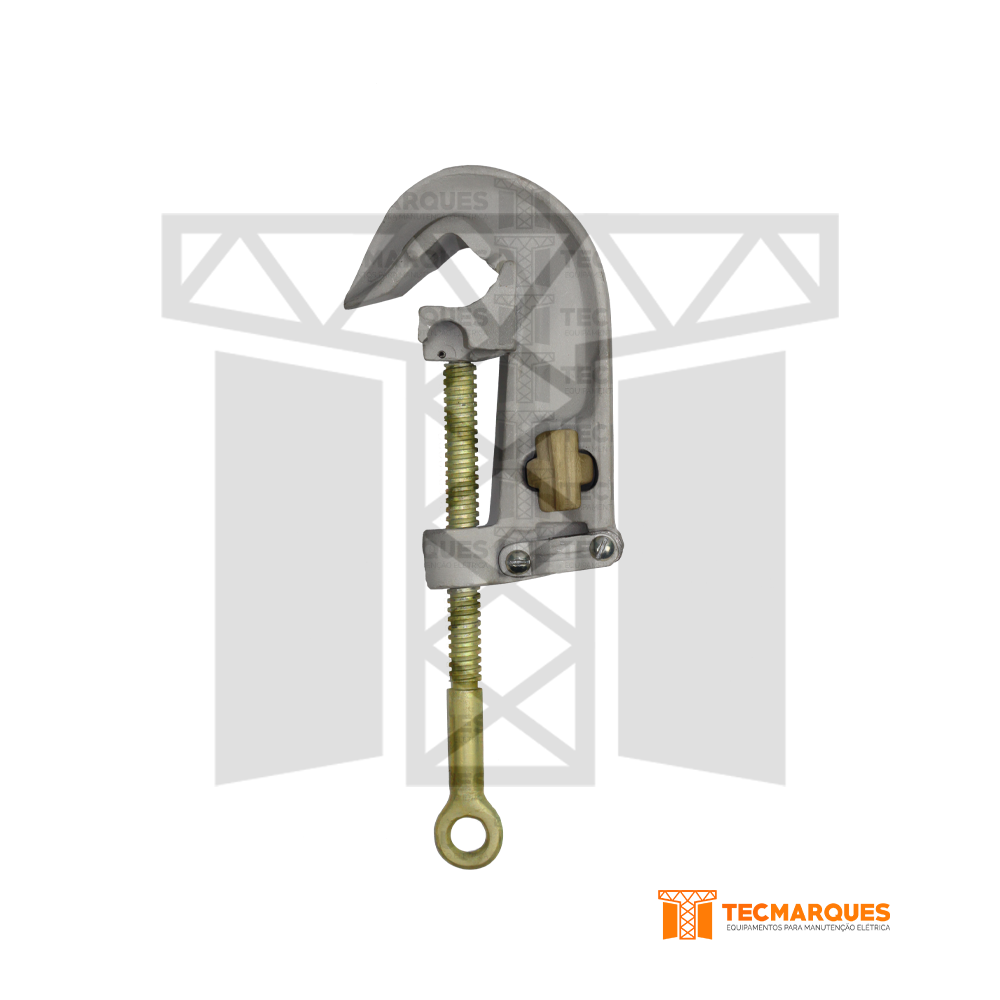

Clamp (C-type) for Use in Substations from TECMARQUES, has an aluminum body; Smooth jaw; Bronze eyescrew type clamping screw; Bronze plug, for plain ferrule.
Models
Specification
Models
| Reference | Description |
| TM12070401 | C-type clamp for use in substations |
Specification
| Electrical ratings | |||
| Rated Current (A) | Short-circuit current | ASTM Designation | |
| 400 | 30 Cycles (kA) – 30 | Type – 1 | |
| 60 Cycles (kA) – 23 | Class – A | ||
| Grade – 5 | |||
| Mechanical ratings | |||
| Connection | Cable ferrule (mm²) | Recommended Torque (daN.m) | Approx. Weight (Kg) |
| Maximum – Ø 50 mm or rectangular busbars 12 x 100 mm | Maximum – 95 mm² (4/0 AWG) | 3.0 | 1.00 |
| Minimum – Ø 5 mm | Minimum – 16 mm² (#2 AWG) | 2.20 | |
| Reference | Description |
| TM12070401 | C-type clamp for use in substations |
| Electrical ratings | |||
| Rated Current (A) | Short-circuit current | ASTM Designation | |
| 400 | 30 Cycles (kA) – 30 | Type – 1 | |
| 60 Cycles (kA) – 23 | Class – A | ||
| Grade – 5 | |||
| Mechanical ratings | |||
| Connection | Cable ferrule (mm²) | Recommended Torque (daN.m) | Approx. Weight (Kg) |
| Maximum – Ø 50 mm or rectangular busbars 12 x 100 mm | Maximum – 95 mm² (4/0 AWG) | 3.0 | 1.00 |
| Minimum – Ø 5 mm | Minimum – 16 mm² (#2 AWG) | 2.20 | |
