Wire Tong Saddle
Wire Tong Saddle

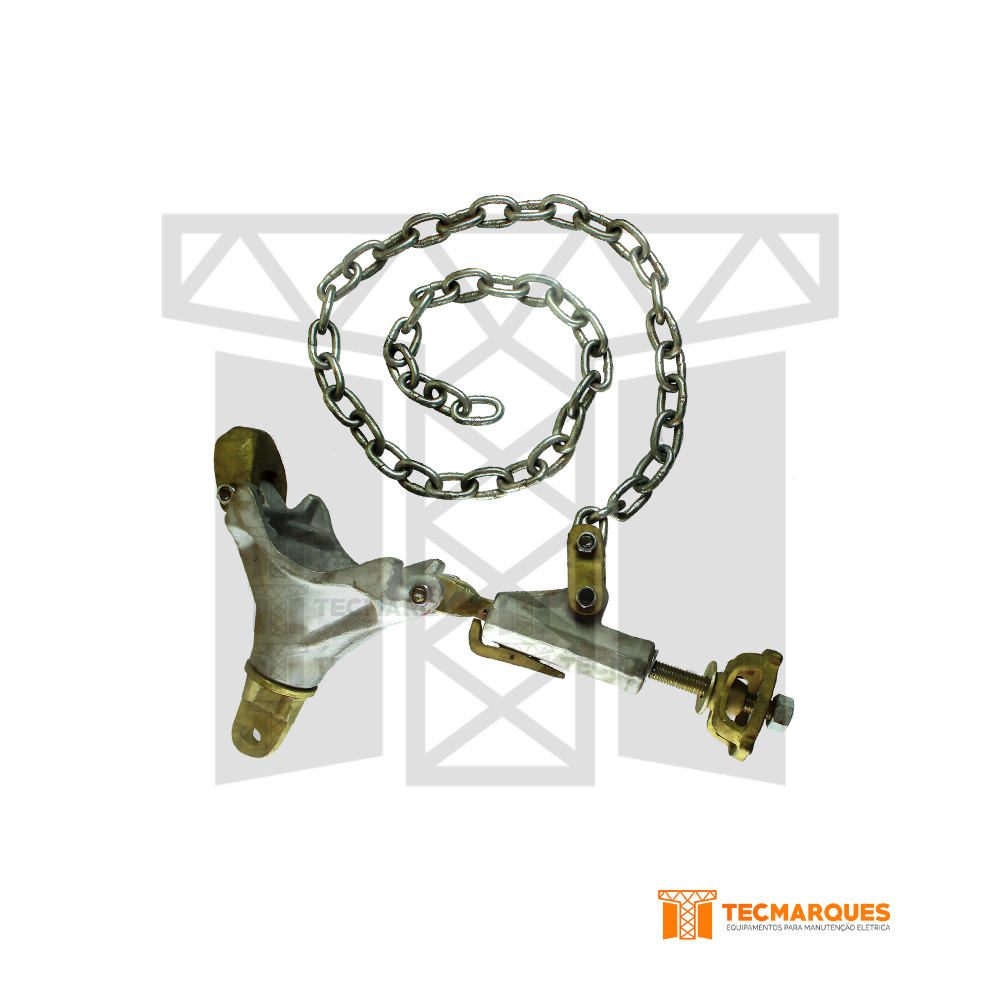

Wire Tong Saddle is manufactured in aluminum alloy. The wire tong saddle is used for coupling the wire tong where the support of the auxiliary crossarm set is made.
Models
Specification
Models
| Reference | Description |
| TM03050105 | Saddle with shackle |
| TM03050102 | Saddle with collar of 38 mm |
| TM03050103 | Saddle with collar of 51 mm |
| TM03050104 | Saddle with collar of 64 mm |
| TM03050110 | Saddle with extender and shackle |
| TM03050107 | Saddle with extender and collar of 38 mm |
| TM03050108 | Saddle with extender and collar of 51 mm |
| TM03050109 | Saddle with extender and collar of 64 mm |
Specification
| Reference | Nominal Working Capacity (daN) | Nominal Working Capacity (lb) | Approx. Weight Kg | Approx. Weight lb |
| TM03050105 | 454 | 1000 | 4.4 | 9.7 |
| TM03050102 | 454 | 1000 | 4.9 | 10.8 |
| TM03050103 | 454 | 1000 | 5 | 11.02 |
| TM03050104 | 454 | 1000 | 5.1 | 11.24 |
| TM03050110 | 363 | 800 | 3.9 | 8.6 |
| TM03050107 | 363 | 800 | 5.4 | 11.9 |
| TM03050108 | 363 | 800 | 5.5 | 12.13 |
| TM03050109 | 363 | 800 | 5.6 | 12.35 |
