String Insulating Separator
String Insulating Separator

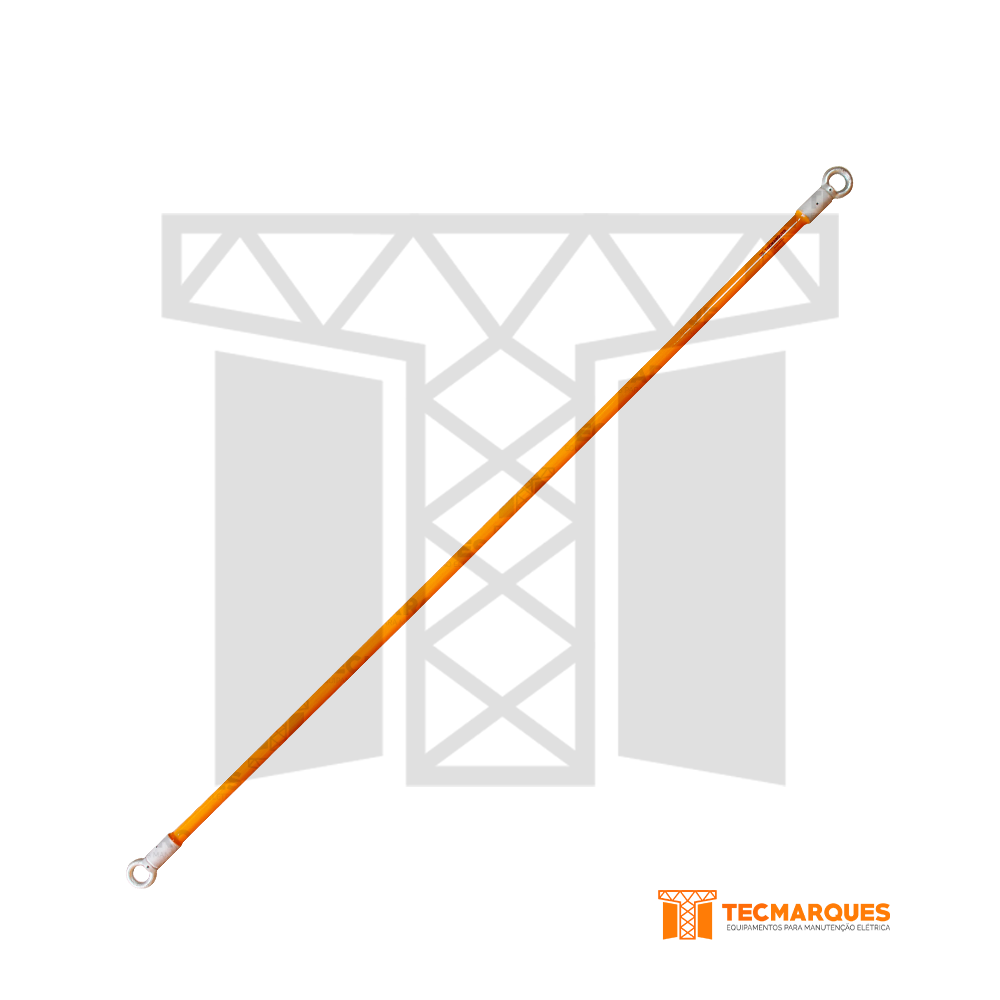

String Insulating Separator. The separator stick is used basically for separating ropes.
This stick is made of fiberglass impregnated with epoxy resin and a polyurethane foam core. At its ends it has heads made of aluminum alloy with swivel eyes in forged steel that allow the rope to pass through.
Models
Specification
Models
| Reference | Description |
| TM01080101 | Rope insulating separator, Ø 25 |
| TM01080102 | Rope insulating separator, Ø 25 |
| TM01080103 | Rope insulating separator, Ø 25 |
Specification
| Reference | Nominal Length (mm) | Number of steps | Approx. Weight | |
| Kg | lb | |||
| TM06040301 | 2800 | 9 | 22,60 | 49,80 |
| TM06040302 | 3700 | 12 | 25,30 | 55,70 |
| TM06040303 | 4600 | 15 | 27,00 | 59,50 |
| TM06040304 | 5900 | 19 | 30,00 | 66,10 |
| Reference | Description |
| TM01080101 | Rope insulating separator, Ø 25 |
| TM01080102 | Rope insulating separator, Ø 25 |
| TM01080103 | Rope insulating separator, Ø 25 |
| Reference | Nominal Length (mm) | Number of steps | Approx. Weight | |
| Kg | lb | |||
| TM06040301 | 2800 | 9 | 22,60 | 49,80 |
| TM06040302 | 3700 | 12 | 25,30 | 55,70 |
| TM06040303 | 4600 | 15 | 27,00 | 59,50 |
| TM06040304 | 5900 | 19 | 30,00 | 66,10 |
