Scissors with lever actuation
Scissors with lever actuation

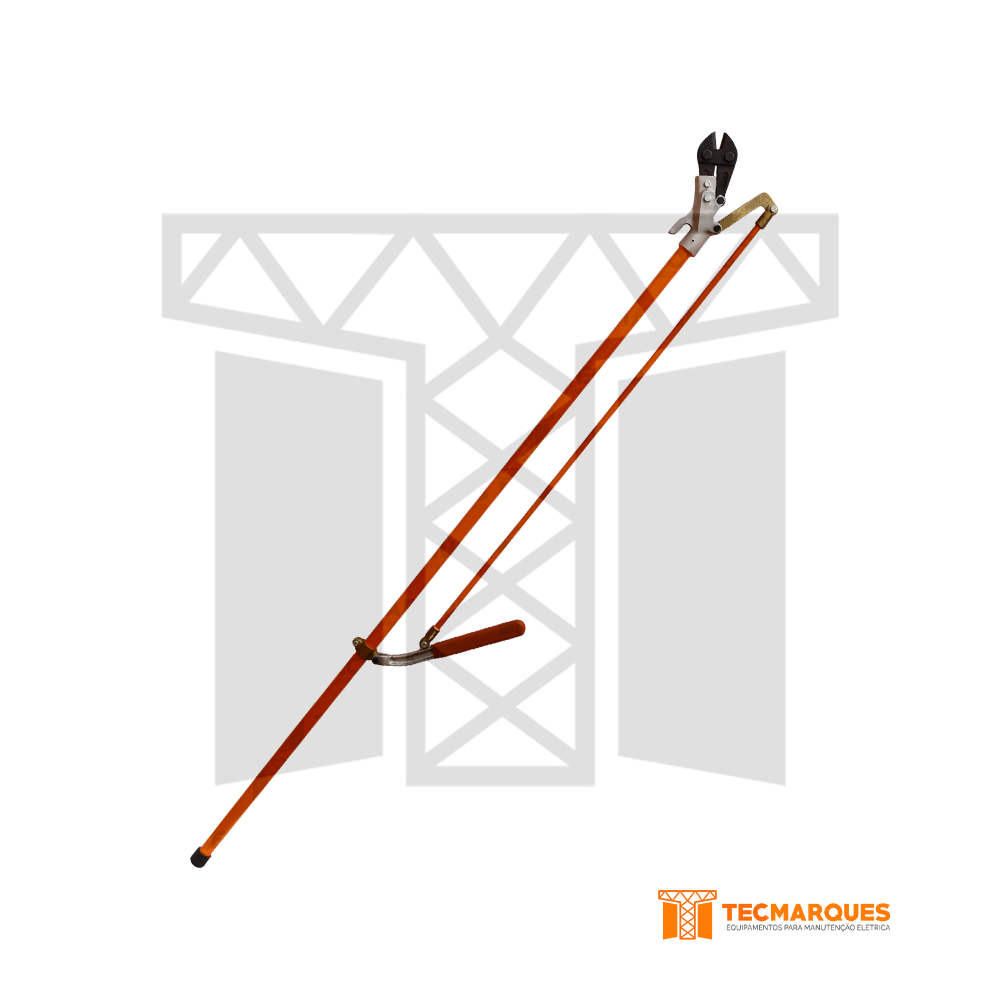

Scissors with lever actuation from TECMARQUES is manufactured for cutting AAC, AC aluminum cables and copper by the hot-line method.
This stick is made of fiberglass, impregnated with epoxy resin and a polyurethane foam core. It has a reinforced fiberglass tie rod, which actuates the blades, and a lever with plastic coating.
Models
Specification
Models
| Reference | Description |
| TM02130301 | Lever-operated scissors, Ø 32mm – Overall length 1450mm for cable gauge up to 1/0 CAA, Ø 10,11mm |
| TM02130302 | Lever-operated scissors, Ø 32mm – Overall length 2000mm for cable gauge up to 1/0 CAA, Ø 10,11mm |
| TM02130303 | Lever-operated scissors, Ø 38mm – Overall length 1450mm for cable gauge up to 4/0 CAA, Ø 14,31mm |
| TM02130304 | Lever-operated scissors, Ø 38mm – Overall length 2000mm for cable gauge up to 4/0 CAA, Ø 14,31mm |
| TM02130305 | Lever-operated scissors, Ø 38mm – Overall length 1450mm for cable gauge 336,8 MCM CAA, Ø 18,83mm |
| TM02130306 | Lever-operated scissors, Ø 38mm – Overall length 2000mm for cable gauge 336,8 MCM CAA, Ø 18,83mm |
Specification
| Stick Dimensions | Approx. Weight | |||||
| Reference | For Cable Gauges up to | Diameter | Insulated length (mm) | Overall length (mm) | Kg | lb |
| TM02130301 | 1/0 CAA (ACSR) Ø 10,11 mm | 32 | 710 | 1450 | 3,45 | 7,60 |
| TM02130302 | 1/0 CAA Ø 10,11 mm | 32 | 1160 | 2000 | 4,00 | 8,82 |
| TM02130303 | 4/0 CAA Ø 14,31 mm | 38 | 710 | 1450 | 5,40 | 11,90 |
| TM02130304 | 4/0 CAA (ACSR) Ø 14,31 mm | 38 | 1160 | 2000 | 6,00 | 13,20 |
| TM02130305 | 336,8 MCM CAA Ø 18,83 mm | 38 | 710 | 1450 | 6,00 | 13,20 |
| TM02130306 | 336,8 MCM CAA Ø 18,83 mm | 38 | 1160 | 2000 | 6,80 | 15,00 |
