Swivel hook ladder

Swivel hook ladder

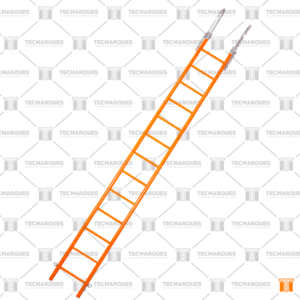

The Swivel Hook Ladder is used for innumerous types of work during maintenance in energized lines, allowing access to the electrician at critical points.

Made of fiberglass, this model of ladder for energized lines has side rails with three types of diameters : 38, 51 e 64mm; and fiberglass steps with non-slip surface and diameter of 32mm, spaced between each other at rectangular distances of 300m.
To facilitate and provide greater safety, this ladder has at its end two rotating hooks in carbon steel with superficial treatment and diameter of ø 25,4mm (1”), its internal opening is available with 8”, 14” and 18”.

Nominal working capacity: 567 daN (1250 lbf) for hook ladders with 8″; 454 daN (1000 lbf) for hook ladders with 14″; and 340 daN (750 lbf) for hook ladders with 18″.

Reference

Specifications

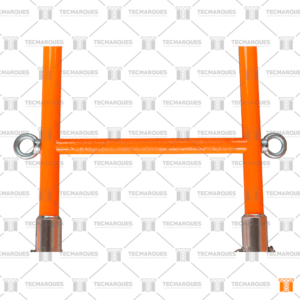

Swivel hook ladder joint

Reference

Specifications


8″ Hook	14″ Hook	18″ Hook	Side Rails Diameter	Insulated Length (mm)	Number of Steps	Approx. Weight (Kg)
PA0210055	PA0210019	PA0210011	38 mm	2390	8	11,00
PA0210056	PA0210020	PA0210012	38 mm	3000	9	12,90
PA0210057	PA0210021	PA0210046	38 mm	3610	12	14,90
PA0210051	PA0210022	PA0210048	51 mm	2390	8	20,80
PA0210052	PA0210023	PA0210047	51 mm	3000	9	22,90
PA0210053	PA0210024	PA0210049	51 mm	3610	12	24,40
PA0210054	PA0210025	PA0210050	51 mm	4220	14	26,20
PA0210013	PA0210026	PA0210001	51 mm	4830	16	28,60
PA0210041	PA0210027	PA0210105	64 mm	2390	8	28,60
PA0210042	PA0210028	PA0210003	64 mm	3000	9	31,00
PA0210043	PA0210029	PA0210004	64 mm	3610	12	33,00
PA0210044	PA0210030	PA0210005	64 mm	4220	14	37,20
PA0210014	PA0210031	PA0210101	64 mm	4830	16	38,70
PA0210015	PA0210032	PA0210007	64 mm	5440	18	42,00
PA0210016	PA0210033	PA0210008	64 mm	6050	20	43,40

Swivel hook ladder joint


		Top section
Reference	Diameter	Length	Hook Opening (inches)	Max. Working Load (daN)
PA0210167	64	3000	8”	567
PA0210156	64	3610	8”	567
PA0210164	64	4220	8”	567
PA0210165	64	4830	8”	567
PA0210166	64	6050	8”	567
PA0210045	64	3000	14”	454
PA0210035	64	3610	14”	454
PA0210036	64	4220	14”	454
PA0210034	64	4830	14”	454
PA0210037	64	6050	14”	454
PA0210103	64	3000	18”	340
PA0210009	64	3610	18”	340
PA0210100	64	4220	18”	340
PA0210006	64	4830	18”	340
PA0210102	64	6050	18”	340

		Intermediate section
PA0210018	64	2960	–	567

		Lower section
PA0210017	64	2390	–	567
PA0210148	64	3000	–	567
PA0210149	64	3610	–	567

Reference

Reference	Description
PA0210055	Swivel Hook Ladder, 8 x 38 x 2390 mm
PA0210056	Swivel Hook Ladder, 8 x 38 x 3000 mm
PA0210057	Swivel Hook Ladder, 8 x 38 x 3610 mm
PA0210051	Swivel Hook Ladder, 8 x 51 x 2390 mm
PA0210052	Swivel Hook Ladder, 8 x 51 x 3000 mm
PA0210053	Swivel Hook Ladder, 8 x 51 x 3610 mm
PA0210054	Swivel Hook Ladder, 8 x 51 x 4220 mm
PA0210013	Swivel Hook Ladder, 8 x 51 x 4830 mm
PA0210041	Swivel Hook Ladder, 8 x 64 x 2390 mm
PA0210042	Swivel Hook Ladder, 8 x 64 x 3000 mm
PA0210043	Swivel Hook Ladder, 8 x 64 x 3610 mm
PA0210044	Swivel Hook Ladder, 8 x 64 x 4220 mm
PA0210014	Swivel Hook Ladder, 8 x 64 x 4830 mm
PA0210015	Swivel Hook Ladder, 8 x 64 x 5440 mm
PA0210016	Swivel Hook Ladder, 8 x 64 x 6050 mm
PA0210019	Swivel Hook Ladder, 14 x 38 x 2390 mm
PA0210020	Swivel Hook Ladder, 14 x 38 x 3000 mm
PA0210021	Swivel Hook Ladder, 14 x 38 x 3610 mm
PA0210022	Swivel Hook Ladder, 14 x 51 x 2390 mm
PA0210023	Swivel Hook Ladder, 14 x 51 x 3000 mm
PA0210024	Swivel Hook Ladder, 14 x 51 x 3610 mm
PA0210025	Swivel Hook Ladder, 14 x 51 x 4220 mm
PA0210026	Swivel Hook Ladder, 14 x 51 x 4830 mm
PA0210027	Swivel Hook Ladder, 14 x 64 x 2390 mm
PA0210028	Swivel Hook Ladder, 14 x 64 x 3000 mm
PA0210029	Swivel Hook Ladder, 14 x 64 x 3610 mm
PA0210030	Swivel Hook Ladder, 14 x 64 x 4220 mm
PA0210031	Swivel Hook Ladder, 14 x 64 x 4830 mm
PA0210032	Swivel Hook Ladder, 14 x 64 x 5440 mm
PA0210033	Swivel Hook Ladder, 14 x 64 x 6050 mm
PA0210011	Swivel Hook Ladder, 18 x 38 x 2390 mm
PA0210012	Swivel Hook Ladder, 18 x 38 x 3000 mm
PA0210046	Swivel Hook Ladder, 18 x 38 x 3610 mm
PA0210048	Swivel Hook Ladder, 18 x 51 x 2390 mm
PA0210047	Swivel Hook Ladder, 18 x 51 x 3000 mm
PA0210049	Swivel Hook Ladder, 18 x 51 x 3610 mm
PA0210050	Swivel Hook Ladder, 18 x 51 x 4220 mm
PA0210001	Swivel Hook Ladder, 18 x 51 x 4830 mm
PA0210105	Swivel Hook Ladder, 18 x 64 x 2390 mm
PA0210003	Swivel Hook Ladder, 18 x 64 x 3000 mm
PA0210004	Swivel Hook Ladder, 18 x 64 x 3610 mm
PA0210005	Swivel Hook Ladder, 18 x 64 x 4220 mm
PA0210101	Swivel Hook Ladder, 18 x 64 x 4830 mm
PA0210007	Swivel Hook Ladder, 18 x 64 x 5440 mm
PA0210008	Swivel Hook Ladder, 18 x 64 x 6050 mm
PA0210167	Swivel Hook Ladder, 8 x 64 x 3000 mm, seção superior
PA0210156	Swivel Hook Ladder, 8 x 64 x 3610 mm, seção superior
PA0210164	Swivel Hook Ladder, 8 x 64 x 4220 mm, seção superior
PA0210165	Swivel Hook Ladder, 8 x 64 x 4830 mm, seção superior
PA0210166	Swivel Hook Ladder, 8 x 64 x 6050 mm, seção superior
PA0210045	Swivel Hook Ladder, 14 x 64 x 3000 mm, seção superior
PA0210035	Swivel Hook Ladder, 14 x 64 x 3610 mm, seção superior
PA0210036	Swivel Hook Ladder, 14 x 64 x 4220 mm, seção superior
PA0210034	Swivel Hook Ladder, 14 x 64 x 4830 mm, seção superior
PA0210033	Swivel Hook Ladder, 14 x 64 x 6050 mm, seção superior
PA0210103	Swivel Hook Ladder, 18 x 64 x 3000 mm, seção superior
PA0210009	Swivel Hook Ladder, 18 x 64 x 3610 mm, seção superior
PA0210100	Swivel Hook Ladder, 18 x 64 x 4220 mm, seção superior
PA0210006	Swivel Hook Ladder, 18 x 64 x 4830 mm, seção superior
PA0210102	Swivel Hook Ladder, 18 x 64 x 6050 mm, seção superior
PA0210018	Swivel Hook Ladder, 64 x 2960 mm, seção intermediária
PA0210017	Swivel Hook Ladder, 64 x 2390 mm, seção inferior
PA0210148	Swivel Hook Ladder, 64 x 3000 mm, seção inferior
PA0210149	Swivel Hook Ladder, 64 x 3610 mm, seção inferior

Specifications


8″ Hook	14″ Hook	18″ Hook	Side Rails Diameter	Insulated Length (mm)	Number of Steps	Approx. Weight (Kg)
PA0210055	PA0210019	PA0210011	38 mm	2390	8	11,00
PA0210056	PA0210020	PA0210012	38 mm	3000	9	12,90
PA0210057	PA0210021	PA0210046	38 mm	3610	12	14,90
PA0210051	PA0210022	PA0210048	51 mm	2390	8	20,80
PA0210052	PA0210023	PA0210047	51 mm	3000	9	22,90
PA0210053	PA0210024	PA0210049	51 mm	3610	12	24,40
PA0210054	PA0210025	PA0210050	51 mm	4220	14	26,20
PA0210013	PA0210026	PA0210001	51 mm	4830	16	28,60
PA0210041	PA0210027	PA0210105	64 mm	2390	8	28,60
PA0210042	PA0210028	PA0210003	64 mm	3000	9	31,00
PA0210043	PA0210029	PA0210004	64 mm	3610	12	33,00
PA0210044	PA0210030	PA0210005	64 mm	4220	14	37,20
PA0210014	PA0210031	PA0210101	64 mm	4830	16	38,70
PA0210015	PA0210032	PA0210007	64 mm	5440	18	42,00
PA0210016	PA0210033	PA0210008	64 mm	6050	20	43,40
