Temporary jumper for 15 kV – Remote installation with HV clamp

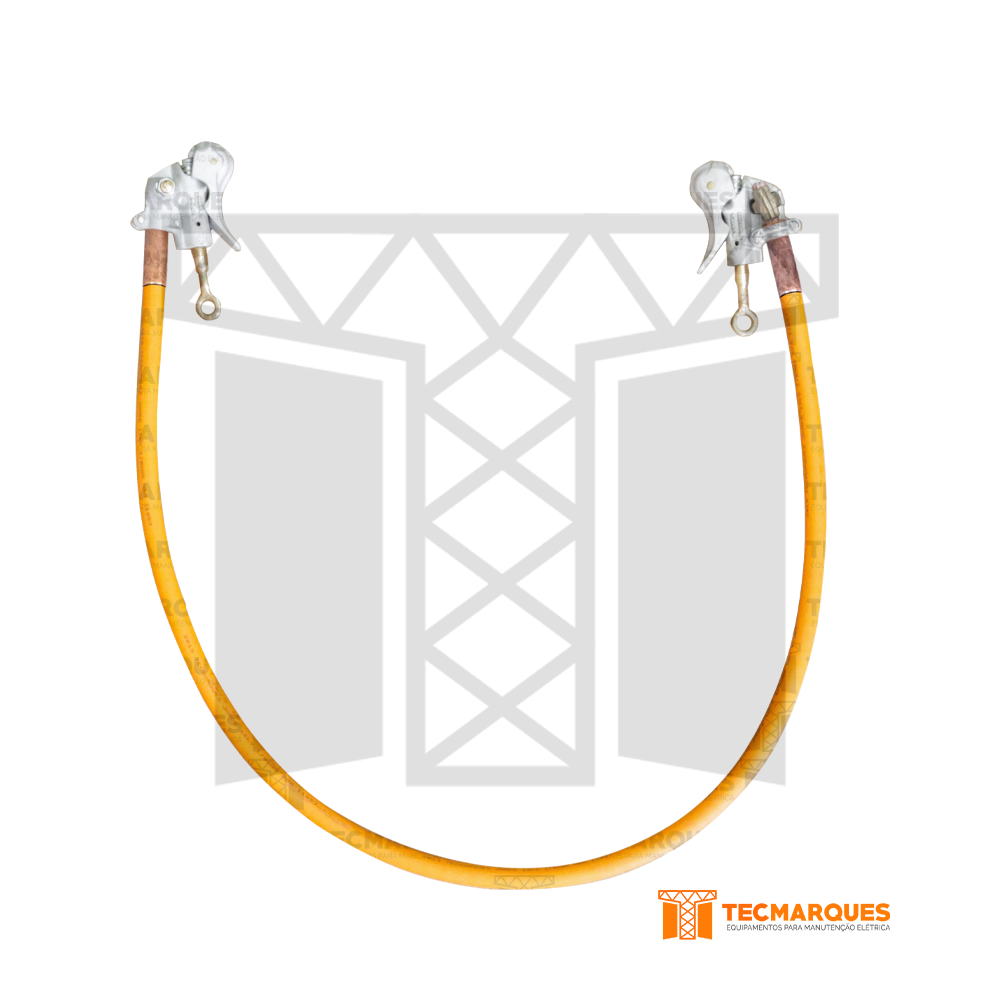

TM0505 - Jumper Temporário com Grampo de Torção MD (1)

Temporary jumper for 15 kV – Remote installation with HV clamp

Name: Temporary jumper for 15 kV - Remote installation with HV clamp
Availability: InStock

Temporary jumper for 15 kV – Remote installation with HV clamp, from TECMARQUES is ideal for temporary power diversions. With twist clamps for remote application, it has an insulated flexible copper conductor. The aluminum alloy clamps adapt to diameters between Ø 4 and 29 mm, offering versatility in various situations. A reliable equipment for professionals who face challenges in interventions on energized electrical networks.

Models

Specification

Models

Specification


Reference	Cable Gauge (AWG)	Clamp Connection Capacity		Overall length (mm)	Rated Current Capacity (A)	Approx. Weight
		Minimum	Maximum			Kg	lb
TM05050201	2	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	200	4,80	10,58
TM05050202	2	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	200	5,50	12,13
TM05050203	1/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	260	7,10	15,65
TM05050204	1/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	260	8,40	18,52
TM05050205	2/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	300	8,30	18,30
TM05050206	2/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	300	9,80	21,61
TM05050207	4/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	400	10,70	23,59
TM05050208	4/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	400	12,80	28,22

Modelo

Reference	Description
TM05050201	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 2AWG – Length 3700 MM
TM05050202	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 2AWG – Length 4600 MM
TM05050203	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 1/0 AWG – Length 3700 MM
TM05050204	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 1/0 AWG – Length 4600 MM
TM05050205	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 2/0 AWG – Length 3700 MM
TM05050206	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 2/0 AWG – Length 4600 MM
TM05050207	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 4/0 AWG – Length 3700 MM
TM05050208	Temporary jumper for 15 kV – Remote installation with HV clamp, temporary, connection capacity 29, cable 4/0 AWG – Length 4600 MM

Specification


Reference	Cable Gauge (AWG)	Clamp Connection Capacity		Overall length (mm)	Rated Current Capacity (A)	Approx. Weight
		Minimum	Maximum			Kg	lb
TM05050201	2	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	200	4,80	10,58
TM05050202	2	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	200	5,50	12,13
TM05050203	1/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	260	7,10	15,65
TM05050204	1/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	260	8,40	18,52
TM05050205	2/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	300	8,30	18,30
TM05050206	2/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	300	9,80	21,61
TM05050207	4/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	3700	400	10,70	23,59
TM05050208	4/0	#6 Copper Ø 4 mm	900 MCM CAA Ø 29 mm	4600	400	12,80	28,22
