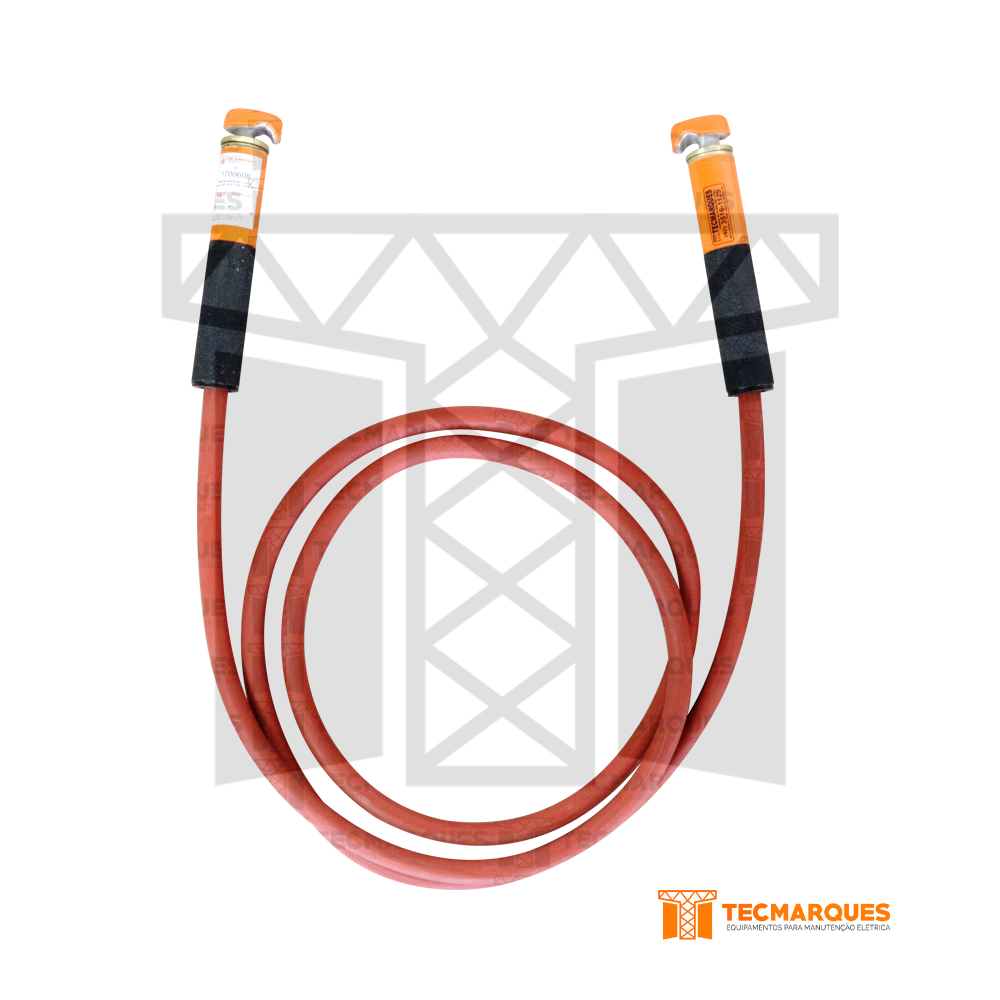

Temporary jumper for 15 kV – Contact installation allows temporary power diversion in interventions on energized installations. With an insulating handle clamp for manual application, it has a flexible copper conductor, EPR insulation, polychloroprene cover and twist clamps for Ø 4-22 mm diameters.
Models
Specification
Models
| Reference | Description |
| TM05050101 | Temporary jumper for 15 kV – Contact installation with insulating protection clamp for By-pass, cable 2AWG |
| TM05050102 | Temporary jumper for 15 kV – Contact installation with insulating protection clamp for By-pass, cable 1/0AWG |
| TM05050103 | Temporary jumper for 15 kV – Contact installation with insulating protection clamp for By-pass, cable 2/0AWG |
| TM05050104 | Temporary jumper for 15 kV – Contact installation with insulating protection clamp for By-pass, cable 4/0AWG |
Specification
| Reference | Cable Gauge (AWG) | Clamp Connection Capacity | Overall length (mm) | Rated Current Capacity (A) | Approx. Weight | ||
| Minimum | Maximum | Kg | lb | ||||
| TM05050101 | 2 | #6 Copper Ø 4 mm | 477 MCM CAA Ø 22 mm | 3700 | 200 | 5,20 | 11,46 |
| TM05050102 | 1/0 | #6 Copper Ø 4 mm | 477 MCM CAA Ø 22 mm | 3700 | 260 | 6,70 | 14,77 |
| TM05050103 | 2/0 | #6 Copper Ø 4 mm | 477 MCM CAA Ø 22 mm | 3700 | 300 | 7,80 | 17,20 |
| TM05050104 | 4/0 | #6 Copper Ø 4 mm | 477 MCM CAA Ø 22 mm | 3700 | 400 | 10,20 | 22,49 |
