Stick Clamp
Stick Clamp

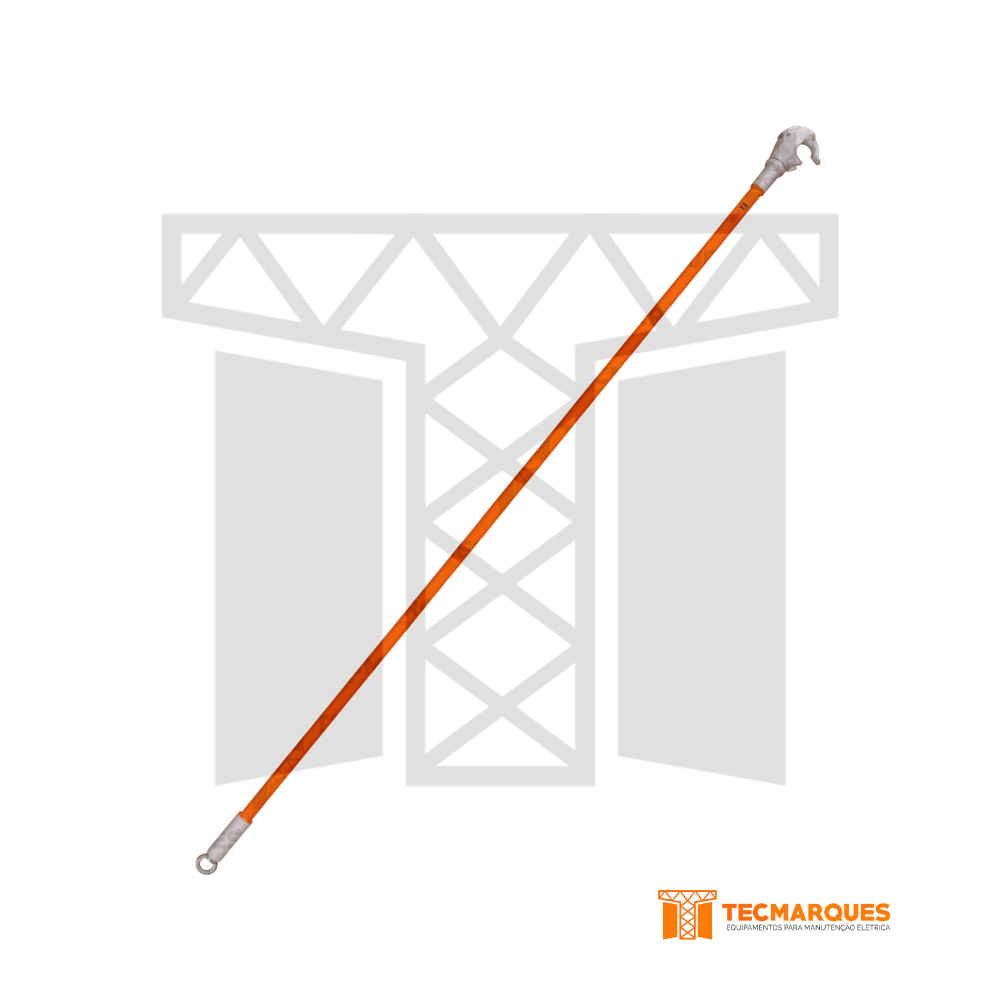

Stick Clamp from TECMARQUES is manufactured with an insulating fiberglass tube. It has on its edge a head in aluminum alloy with closure through a torsion system. ASTM F711 standard. Minimum opening for cable 4.10 mm and maximum opening for cable 57 mm.
Models
Specification
Models
| Reference | Description |
| TM03010101 | Clamp stick, Ø 38mm x 740mm |
| TM03010102 | Clamp stick, Ø 38mm x 2350mm |
| TM03010103 | Clamp stick, Ø 38mm x 2960mm |
| TM03010104 | Clamp stick, Ø 51mm x 1700mm |
| TM03010105 | Clamp stick, Ø 51mm x 2330mm |
| TM03010106 | Clamp stick, Ø51mm x 2920mm |
| TM03010107 | Clamp stick, Ø 51mm x 3530mm |
| TM03010108 | Clamp stick, Ø 64mm x 2290mm |
| TM03010110 | Clamp stick, Ø 64mm x 510mm |
| TM03010111 | Clamp stick, Ø 64mm x 4120mm |
| TM03010112 | Sectional clamp stick, Ø 64mm x 4730mm |
| TM03010113 | Clamp stick, Ø 76mm x 3470mm |
| TM03010114 | Clamp stick, Ø 76mm x 4080mm |
| TM03010109 | Clamp stick, Ø 64mm x 2900mm |
Specification
| Reference | Dimensions | Max. working load (daN) | Approx. Weight | ||
| Insulated length | Insulated Length (mm) | Kg | lb | ||
| Ø 38 mm | |||||
| TM03010101 | 1740 | 340 | 3,30 | 7,28 | |
| TM03010102 | 2350 | 340 | 3,80 | 8,38 | |
| TM03010103 | 1700 | 340 | 4,20 | 9,26 | |
| Ø 51 mm | |||||
| TM03010104 | 1700 | 454 | 4,60 | 10,14 | |
| TM03010105 | 2330 | 454 | 5,30 | 11,68 | |
| TM03010106 | 2920 | 454 | 6,00 | 13,23 | |
| TM03010107 | 3530 | 454 | 7,50 | 16,53 | |
| Ø 64 mm | |||||
| TM03010108 | 2290 | 567 | 7,30 | 16,09 | |
| TM03010110 | 3510 | 567 | 8,40 | 18,52 | |
| TM03010111 | 4120 | 567 | 9,40 | 20,72 | |
| TM03010112 | 4730 | 567 | 10,40 | 22,93 | |
| TM03010109 | 2900 | 567 | 13,90 | 30,64 | |
| Ø 76 mm | |||||
| TM03010113 | 3470 | 680 | 12,70 | 28,00 | |
| TM03010114 | 4080 | 680 | 14,90 | 32,85 |
