Saddle for metal structure
Saddle for metal structure

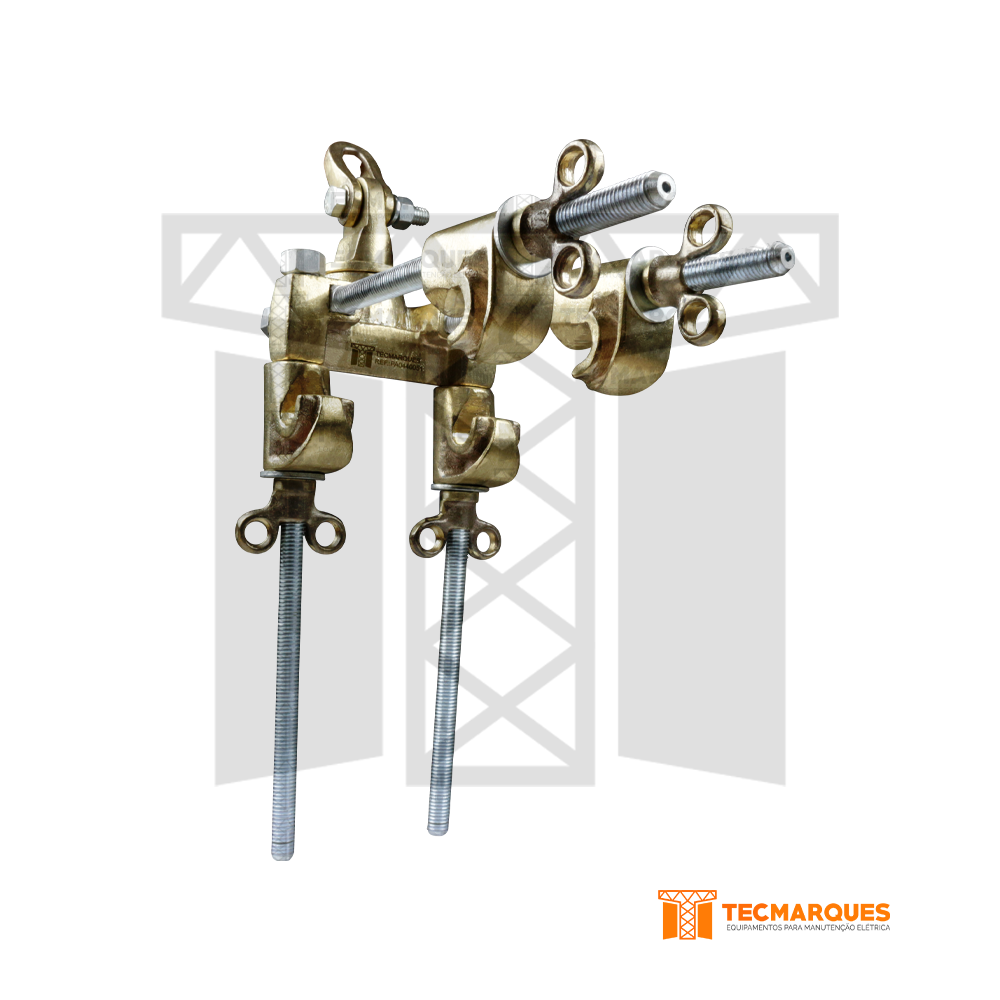

Saddle for metal structure from TECMARQUES is fixed to metal structures through its hooks with wing nuts. This saddle model is used to support the wire tong, the spliced wire tong or the rope block for the locomotion of insulator strings.
Models
Specification
Models
| Reference | Description |
| TM03060101 | Saddle for metal structures without collar |
| TM03060102 | Saddle for metal structures with collar of 38 mm |
| TM03060103 | Saddle for metal structures with collar of 51 mm |
| TM03060104 | Saddle for metal structures with collar of 64 mm |
| TM03060105 | Saddle for metal structures without collar, with 2 small and 2 large fixing clamps |
Specification
| Reference | Material | Connection Capacity | Nominal Working Capacity (daN) | Approx. Weight Kg | Approx. Weight lb |
| TM03060101 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 5,50 | 12,13 |
| TM03060102 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,25 | 13,78 |
| TM03060103 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,30 | 13,89 |
| TM03060104 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,50 | 14,33 |
| TM03060105 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 5,80 | 12,79 |
| Reference | Description |
| TM03060101 | Saddle for metal structures without collar |
| TM03060102 | Saddle for metal structures with collar of 38 mm |
| TM03060103 | Saddle for metal structures with collar of 51 mm |
| TM03060104 | Saddle for metal structures with collar of 64 mm |
| TM03060105 | Saddle for metal structures without collar, with 2 small and 2 large fixing clamps |
| Reference | Material | Connection Capacity | Nominal Working Capacity (daN) | Approx. Weight Kg | Approx. Weight lb |
| TM03060101 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 5,50 | 12,13 |
| TM03060102 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,25 | 13,78 |
| TM03060103 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,30 | 13,89 |
| TM03060104 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 6,50 | 14,33 |
| TM03060105 | Bronze | 3″ x 3″ to 7″ x 7″ | 454 | 5,80 | 12,79 |
