Tension stick
Tension stick

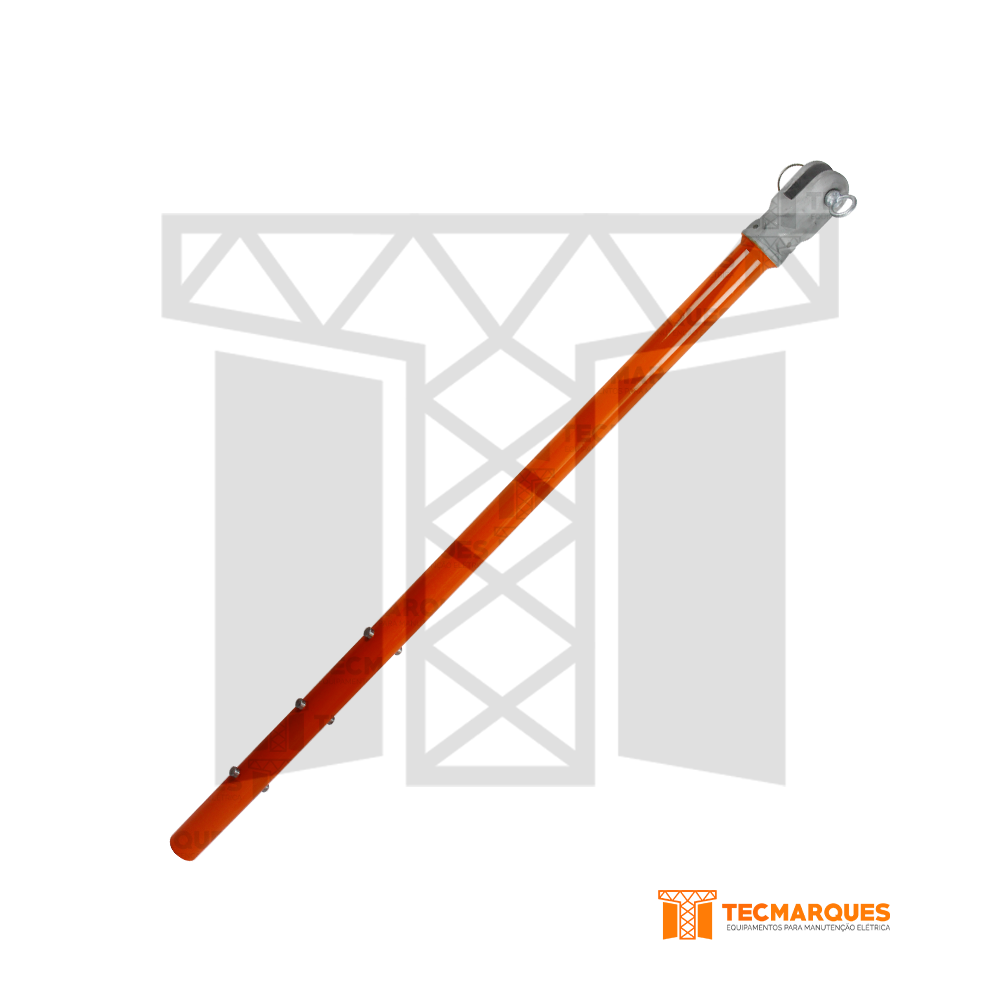

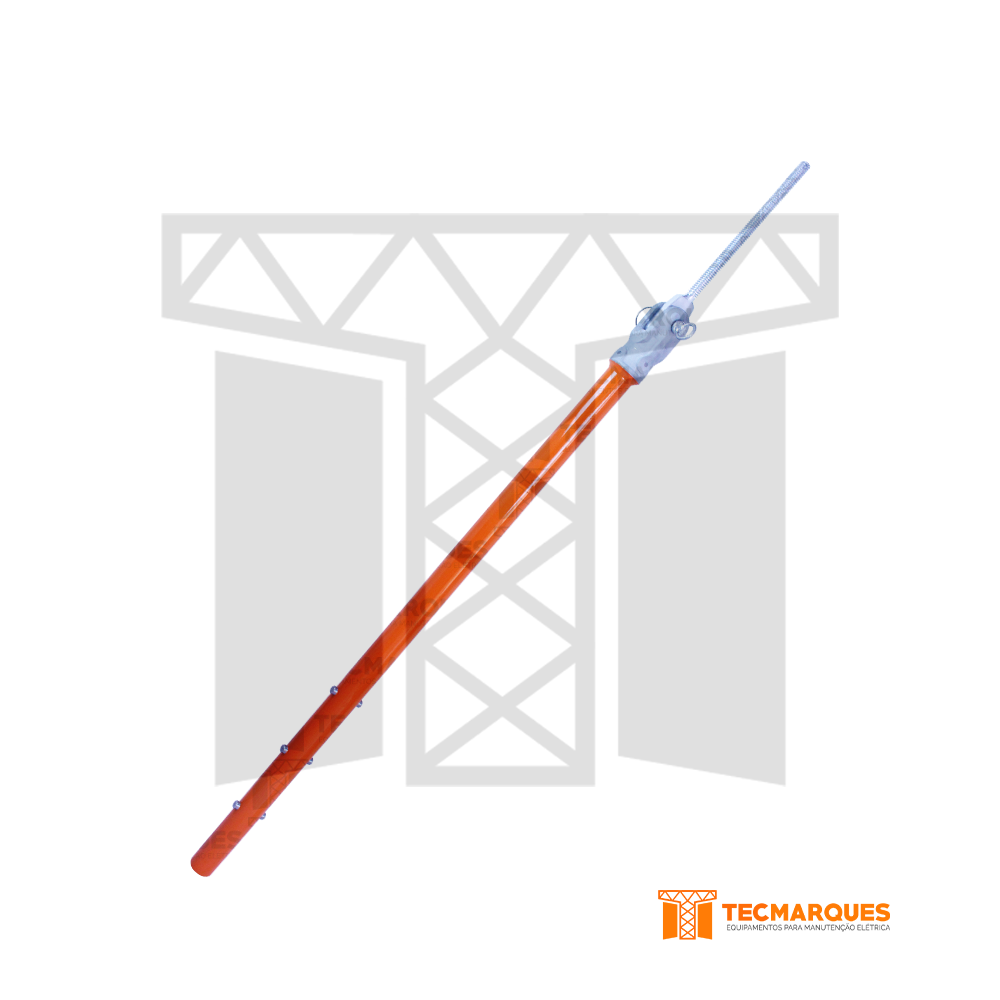

Tension stick from TECMARQUES is made of fiberglass, impregnated with epoxy resin, and has a working capacity rated at 3402 daN.f
Models
Specification
Acessórios
Models
| Reference | Description |
| TM03150101 | Tension stick, Ø 51 mm x 910 mm x 2290 mm |
| TM03150102 | Tension stick, Ø 51 mm x 1220 mm x 2600 mm |
| TM03150103 | Tension stick, Ø 51 mm x 1600 mm x 2980 mm |
| TM03150104 | Tension stick, Ø 51 mm x 2130 mm x 3510 mm |
| TM03150105 | Tension stick, Ø 51 mm x 2600 mm x 3980 mm |
| TM03150106 | Tension stick, Ø 51 mm x 3430 mm x 4810 mm |
| TM03150107 | Tension stick, Ø 51 mm x 4570 mm x 5950 mm |
Specification
| Reference | Diameter | Insulated Length (mm) | Insulated Length (ft.in) | Overall Length (mm) | Overall Length (ft.in) | Nominal Working Capacity | Approx. Weight Kg | Approx. Weight lb |
| TM03150101 | 51 mm ( 2″ ) | 910 | 7′ 6″ | 2290 | 7′ 6″ | 3402 daN (7500 lb) | 8.5 | 18.74 |
| TM03150102 | 1220 | 8′ 6″ | 2600 | 8′ 6″ | 8.9 | 19.62 | ||
| TM03150103 | 1600 | 9′ 9″ | 2980 | 9′ 9″ | 9.3 | 20.5 | ||
| TM03150104 | 2130 | 11′ 6″ | 3510 | 11′ 6″ | 10 | 22.05 | ||
| TM03150105 | 2600 | 13′ 1″ | 3980 | 13′ 1″ | 11.3 | 24.91 | ||
| TM03150106 | 3430 | 15′ 9″ | 4810 | 15′ 9″ | 11.5 | 25.35 | ||
| TM03150107 | 4570 | 19′ 6″ | 5950 | 19′ 6″ | 13 | 28.66 |
Acessórios
| Reference | Description | Approx. Weight Kg | Approx. Weight lb |

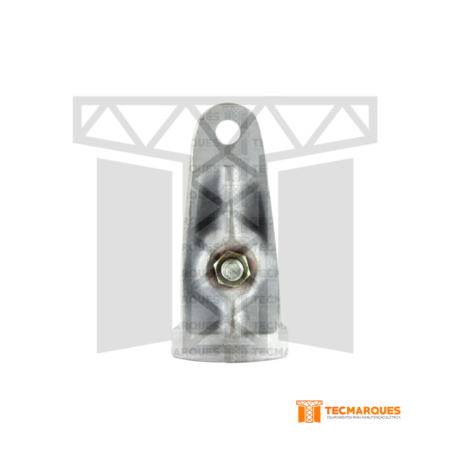

| TM03150201 | Adjustable sleeve for stick Ø 51 mm | 0.70 | 1.54 |
| TM03150202 | Tension screw with 305 mm length | 1.30 | 2.87 |
| TM03150203 | Tension screw with 610 mm length | 1.80 | 3.97 |
| TM03150204 | Tension screw with 915 mm length | 2.30 | 5.07 |

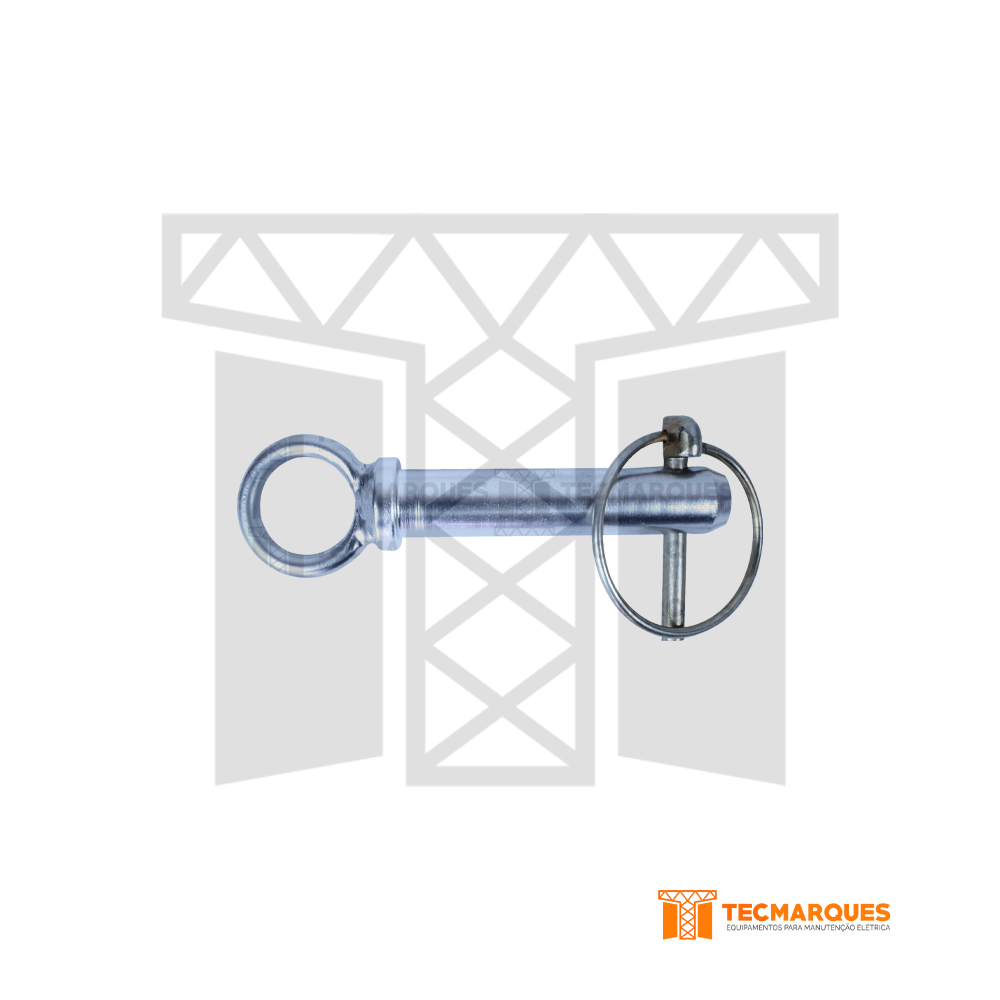

| – | Steel pin for locking the screw in the fork | 0.30 | 0.66 |
