Auxiliary Crossarm Set
Auxiliary Crossarm Set

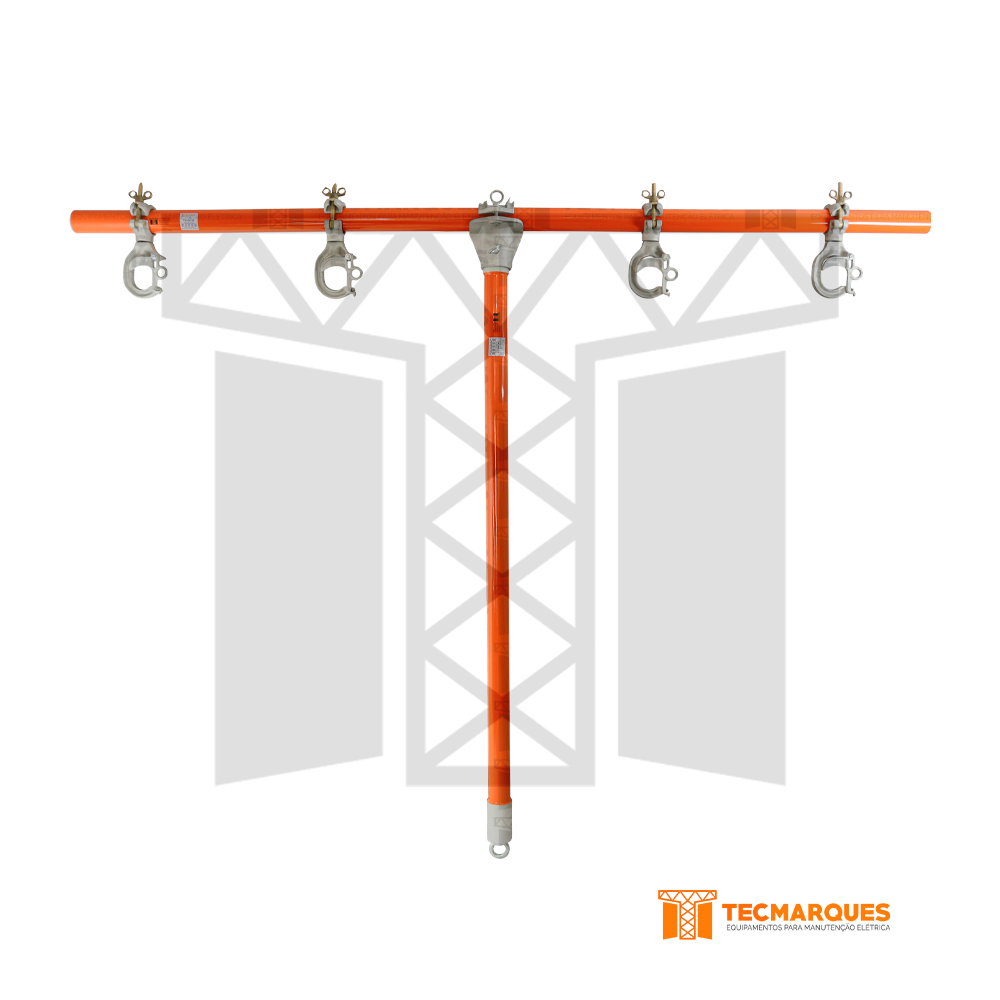

Auxiliary Crossarm Set from TECMARQUES is a tool used for the replacement of crossarms, insulators or poles in short spans of overhead medium voltage networks, used together with saddles for fixation to the pole.
Models
TM03080105
TM03080202
Partes e Componentes
Models
| Reference | Description |
| TM03080105 | Auxiliary crossarm set, 1780MM |
| TM03080202 | Auxiliary crossarm set, 2390MM |
TM03080105
| Item | Quantity | Reference | Description | Approx. Weight | |
| Kg | lb | ||||

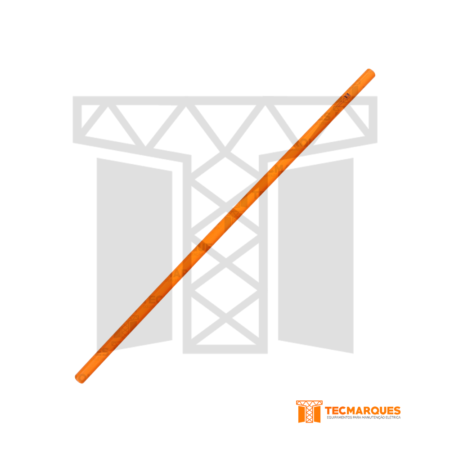

| 1 | 1 | TM03080101 | Crossarm stick Ø 64 mm x 1780 mm Insulated length | 5,10 | 11,24 |
| 2 | 1 | TM03080102 | Wire tong Ø 64 mm x 1350 mm Insulated length | 2,82 | 6,22 |
| 3 | 1 | TM03080103 | Eye head for connecting the wire tong to the crossarm stick | 1,30 | 2,87 |
| 4 | 04 | TM03080104 | Suspension clamp without insulator | 1,08 | 2,38 |
TM03080202
| Item | Quantity | Reference | Description | Approx. Weight | |
| Kg | lb | ||||
| 1 | 1 | TM03080201 | Crossarm stick Ø 64 mm x 2390 mm Insulated length | 5,10 | 11,24 |
| 2 | 1 | TM03080102 | Wire tong Ø 64 mm x 1350 mm Insulated length | 2,82 | 6,22 |
| 3 | 1 | TM03080103 | Eye head for connecting the wire tong to the crossarm stick | 1,30 | 2,87 |
| 4 | 04 | TM03080104 | Suspension clamp without insulator | 1,08 | 2,38 |
Partes e Componentes
| Reference | Description | Approx. Weight | |
| Kg | lb | ||
| TM03080201 | Lifting clamp 1” with insulator | 5,10 | 11,24 |
| TM03080102 | Lifting clamp 1” without insulator | 2,82 | 6,22 |
| TM03080103 | Lifting clamp 1-1/2” without insulator | 1,30 | 2,87 |
| TM03080104 | Lifting clamp 1-1/2” with insulator | 1,08 | 2,38 |
| TM03070205 | Stirrup for knee brace (Ø 64 mm) | 0,94 | 2,09 |
| TM03070206 | 64 mm strap for knee brace | 1,50 | 3,31 |
| TM03070207 | Eye head without insulator | 1,95 | 4,30 |
| TM03080104 | Suspension clamp without insulator | 1,08 | 2,38 |
| TM03080103 | Eye head | 1,30 | 2,87 |

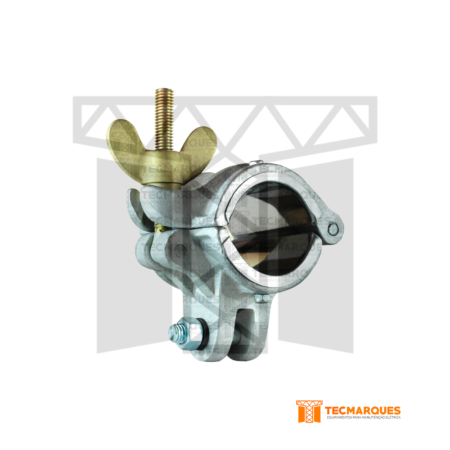

| TM03050210 | Collar of (Ø 64 mm) | 1,00 | 2,20 |
| TM03010102 | Clamp stick, Ø 38 x 2.350mm | 3,80 | 8,38 |
