Temporary Grounding Set for Medium Voltage Networks up to 36 kV (Three-phase), without Stick
Temporary Grounding Set for Medium Voltage Networks up to 36 kV (Three-phase), without Stick

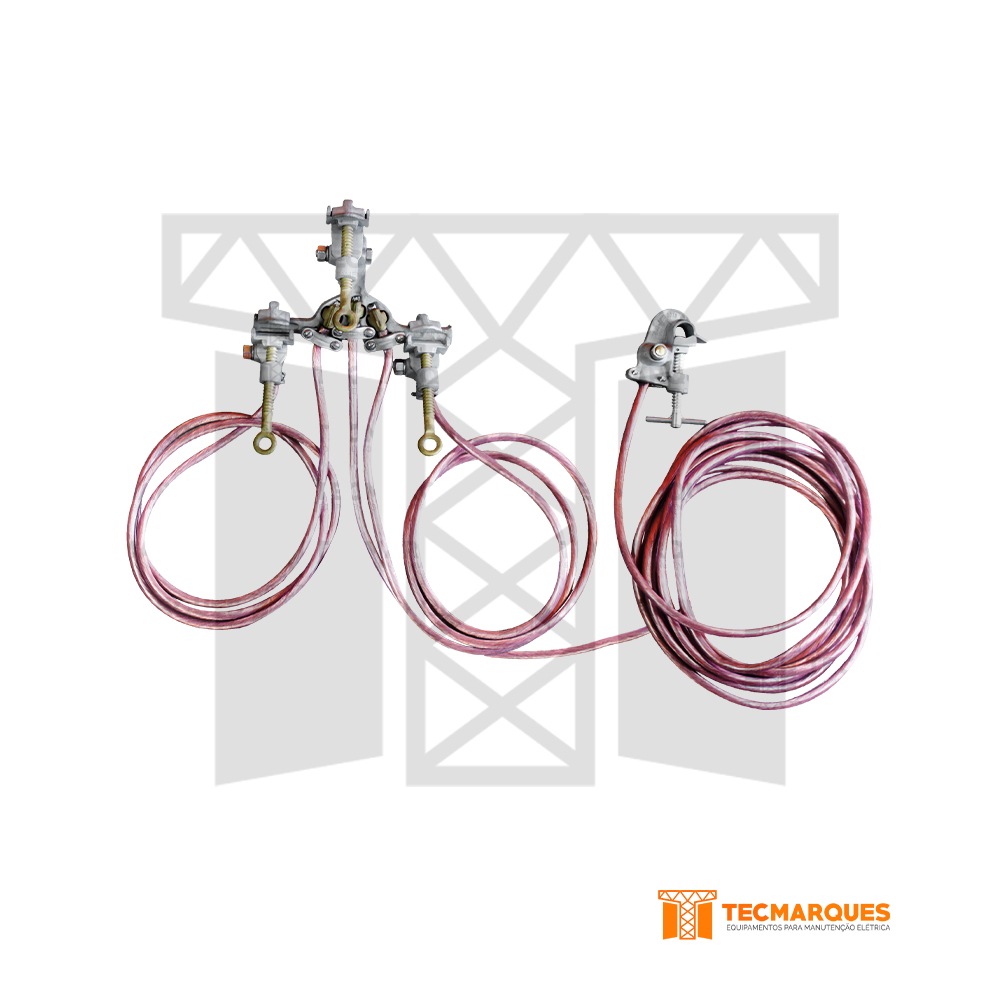

Temporary Grounding Set for Medium Voltage Networks up to 36 kV (Three-phase), without Stick. The grounding sets for medium voltage are made following the ASTM F855:2009 and IEC 60228:2004 standards | Conductors of insulated cables.
Models
PA0040027
Models
| Reference | Description |
| PA0040027 | Temporary grounding set for medium voltage networks up to 36 kV (Three-phase), without stick |
PA0040027
| Temporary grounding set for medium voltage networks up to 36 kV (Three-phase), without stick |
||||
| Maximum short-circuit current: at 30 cycles: 8 kA; at 60 cycles: 5 kA | ||||
| SET COMPOSITION | ||||
| Item | Reference | Qty | Unit | Description |
| 1 | PA0040062 | 3 | pc | Snap-on grounding clamp (C type), with eyescrew |
| 2 | PA0040010 | 1 | pc | Suspension ground cluster bar for simultaneous lifting of the phase clamps |
| 3 | PA0040011 | 1 | pc | Grounding clamp with “T” screw for connection to the auger |
| 4 | C0450005 | 16 | m | Extra flexible copper cable, nominal section 25 mm², with transparent PVC insulation, consisting of 2 lengths of 2 m e 1 length of 12 m |
| 5 | – | 6 | pc | Shrouded plain aluminum ferrule for cable 25 mm² |
| 6 | – | 6 | pc | Heat shrink |
| 7 | PA0040124 | 1 | pc | Grounding auger Ø 17 mm x 1,0 m with threaded bronze tip |
| 8 | PA0270014 | 1 | pc | Switching tool head for grounding clamp |
| 9 | PA0270042 | 1 | pc | Switching tool head |
| 10 | – | 1 | pc | Briefcase-type bag for storage and transport of the set |
| 11 | – | 1 | pc | Bag for storage and transport of the auger |
