Extension Ladder with Oblong Profile
Extension Ladder with Oblong Profile

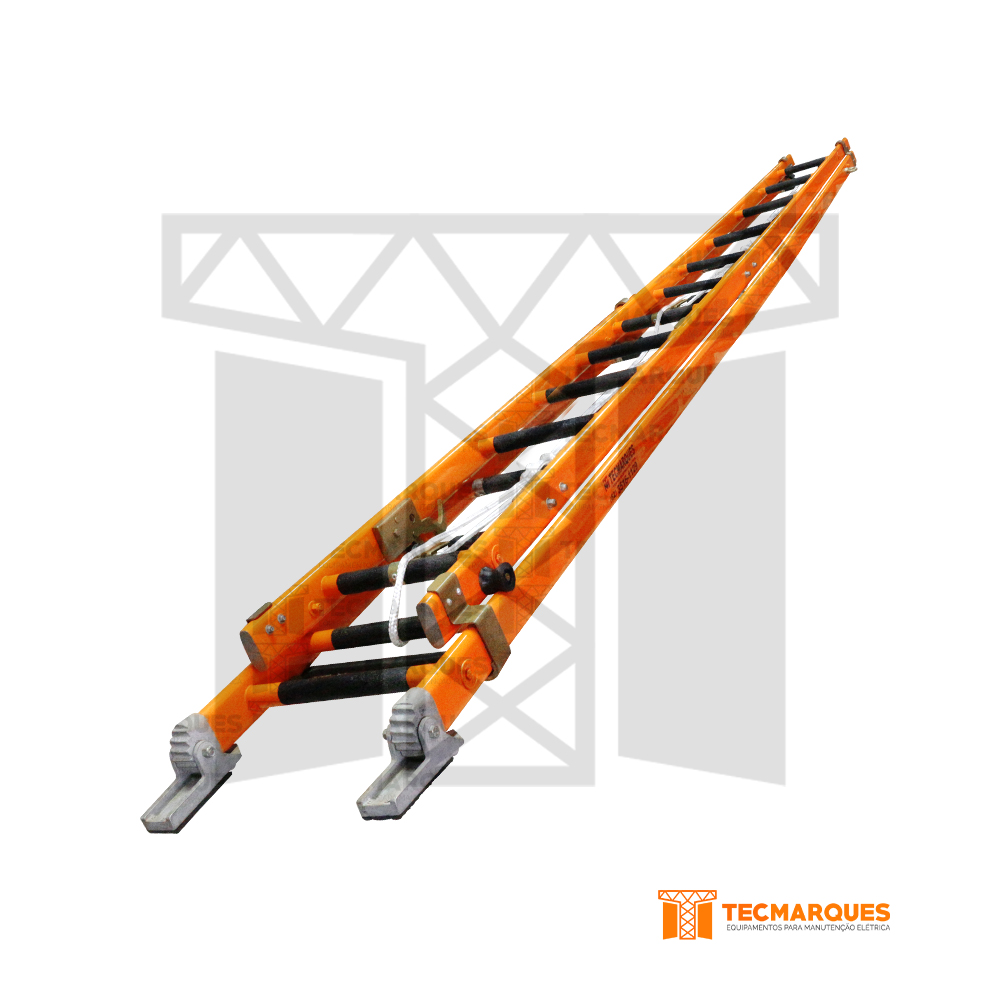

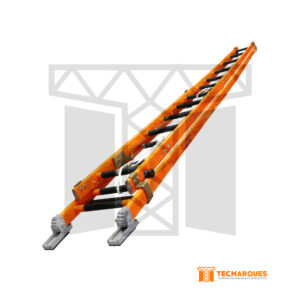

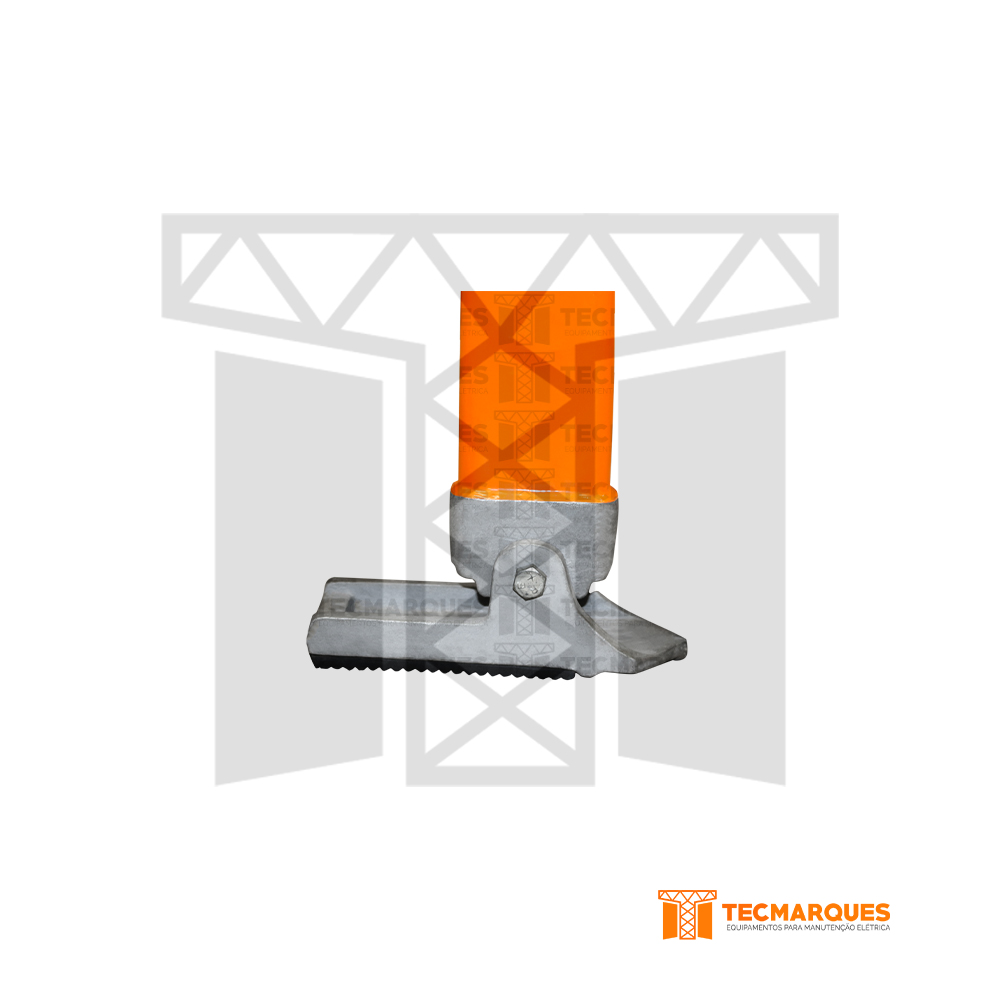

Extension Ladder with Oblong Profile. Made up of stringers in an oblong-type profile and round steps, both manufactured in fiberglass impregnated with epoxy resin with orange paint and a polyurethane foam core. In addition to a non-slip surface on the steps, it has galvanized hardware, rubber or aluminum shoes and a support strap in vulcanized nylon. All models have a workload of 260 daN.
Test voltage: 100 kV every 30 cm.
Models
Escada Simples
Escada Extensível
Models
| Reference | Description |
| TM06090101 | Single ladder oblong profile 2780mm – 8 rungs |
| TM06090102 | Single ladder oblong profile 4030mm – 12 rungs |
| TM06090103 | Single ladder oblong profile 4650mm – 14 rungs |
| TM06090104 | Single ladder oblong profile 5840mm – 18 rungs |
| TM06090201 | Extension ladder oblong profile, closed length 3450mm open 5860mm – 19 rungs |
| TM06090202 | Extension ladder oblong profile, closed length 4050mm open 7080mm – 23 rungs |
| TM06090203 | Extension ladder oblong profile, closed length 4640mm open 8280mm – 27 rungs |
| TM06090204 | Extension ladder oblong profile, closed length 5250mm open 9520mm – 31 rungs |
| TM06090205 | Extension ladder oblong profile, closed length 6280mm open 10760mm – 35 rungs |
| TM06090206 | Extension ladder oblong profile, closed length 6880mm Open length 11980mm – 39 rungs |
| TM06090207 | Extension ladder oblong profile, closed length 7800mm open 13840mm- 45 rungs |
Escada Simples
| Reference | Nominal Length (mm) | Number of steps | Approx. Weight | |
| Kg | lb | |||
| TM06090101 | 2780 | 8 | 11,00 | 24,25 |
| TM06090102 | 4030 | 12 | 15,52 | 34,21 |
| TM06090103 | 4650 | 14 | 17,78 | 39,20 |
| TM06090104 | 5840 | 18 | 22,30 | 49,16 |
Escada Extensível
| Reference | Nominal Length (mm) | Number of steps | Approx. Weight | ||
| Closed | Open | Kg | lb | ||
| TM06090201 | 3450 | 5860 | 19 | 30,00 | 66,13 |
| TM06090202 | 4050 | 7080 | 23 | 35,50 | 78,26 |
| TM06090203 | 4640 | 8280 | 27 | 39,00 | 86,00 |
| TM06090204 | 5250 | 9520 | 31 | 50,00 | 110,23 |
| TM06090205 | 6280 | 10760 | 35 | 54,00 | 119,00 |
| TM06090206 | 6880 | 11980 | 39 | 61,00 | 134,48 |
| TM06090207 | 7800 | 13840 | 45 | 67,00 | 147,71 |
