Mobile Tower Ladder
Mobile Tower Ladder

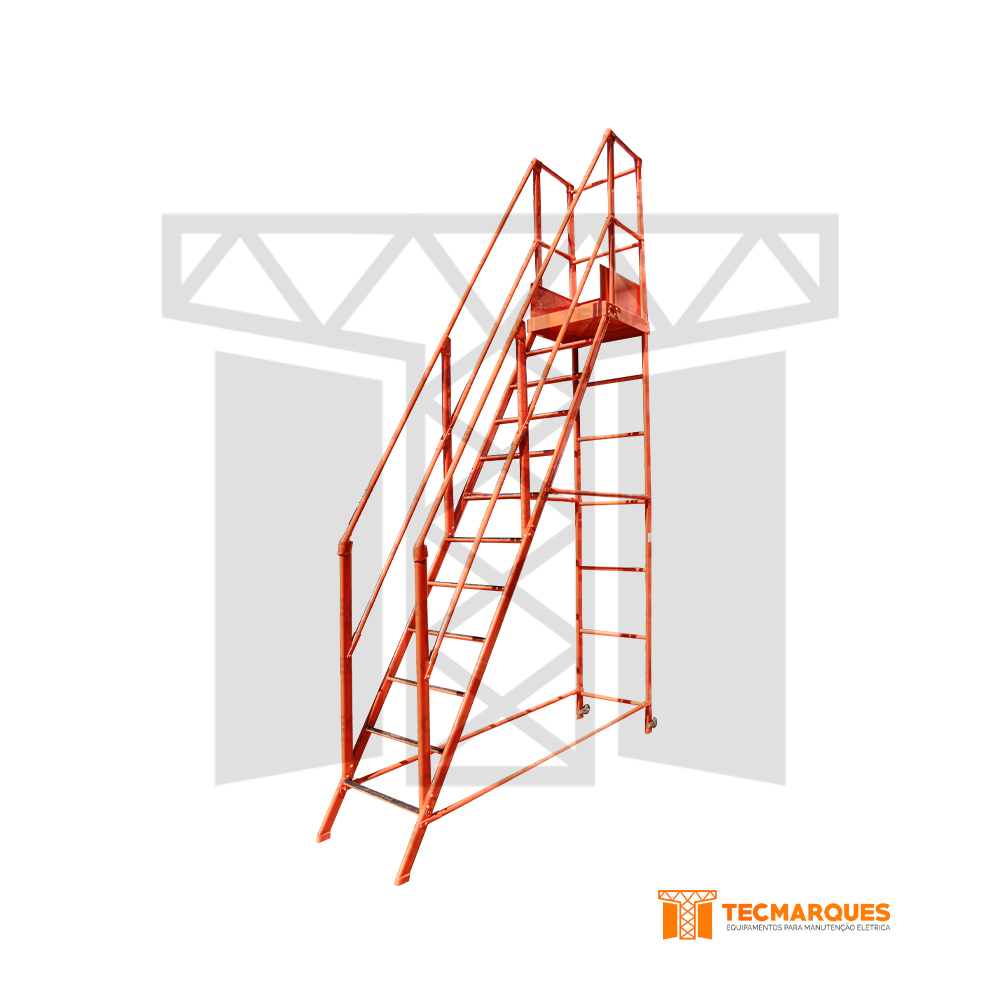

Mobile Tower Ladder. The Mobile Tower Ladder is manufactured with insulating material and immune to corrosion. Mobile platform ladders are the main option for maintenance work on the electrical system in aggressive environments such as substations.
Models
Specification
Models
| Reference | Description |
| TM06120101 | Mobile tower ladder 420 mm x 1680 mm – 1 rung |
| TM06120102 | Mobile tower ladder 630 mm x 1890 mm – 2 rungs |
| TM06120103 | Mobile tower ladder 840 mm x 2100 mm – 3 rungs |
| TM06120104 | Mobile tower ladder 1050 mm x 2310 mm – 4 rungs |
| TM06120105 | Mobile tower ladder 1260 mm x 2520 mm – 5 rungs |
| TM06120106 | Mobile tower ladder 1470 mm x 2730 mm – 6 rungs |
| TM06120107 | Mobile tower ladder 1680 mm x 2940 mm – 7 rungs |
| TM06120108 | Mobile tower ladder 1890 mm x 3150 mm – 8 rungs |
| TM06120109 | Mobile tower ladder 2100 mm x 3360 mm – 9 rungs |
| TM06120110 | Mobile tower ladder 2310 mm x 3570 mm – 10 rungs |
| TM06120111 | Mobile tower ladder 2520 mm x 3780 mm – 11 rungs |
| TM06120112 | Mobile tower ladder 2730 mm x 3990 mm – 12 rungs |
| TM06120113 | Mobile tower ladder 2940 mm x 4200 mm – 13 rungs |
| TM06120114 | Mobile tower ladder 3150 mm x 4410 mm – 14 rungs |
Specification
| Reference | Nominal Working Capacity | Height to platform (mm) | Total height (mm) | Total opening (mm) | Number of steps | Approx. weight (Kg) |
| TM06120101 | 136 | 420 | 1680 | 848 | 1 | 29.10 |
| TM06120102 | 136 | 630 | 1890 | 972 | 2 | 33.00 |
| TM06120103 | 136 | 840 | 2100 | 1096 | 3 | 36.80 |
| TM06120104 | 136 | 1050 | 2310 | 1220 | 4 | 40.70 |
| TM06120105 | 136 | 1260 | 2520 | 1343 | 5 | 44.60 |
| TM06120106 | 136 | 1470 | 2730 | 1467 | 6 | 48.50 |
| TM06120107 | 136 | 1680 | 2940 | 1591 | 7 | 52.40 |
| TM06120108 | 136 | 1890 | 3150 | 1715 | 8 | 56.20 |
| TM06120109 | 136 | 2100 | 3360 | 1839 | 9 | 60.00 |
| TM06120110 | 136 | 2310 | 3570 | 1963 | 10 | 64.00 |
| TM06120111 | 136 | 2520 | 3780 | 2087 | 11 | 67.80 |
| TM06120112 | 136 | 2730 | 3990 | 2211 | 12 | 71.70 |
| TM06120113 | 136 | 2940 | 4200 | 2335 | 13 | 75.60 |
| TM06120114 | 136 | 3150 | 4410 | 2459 | 14 | 79.50 |
