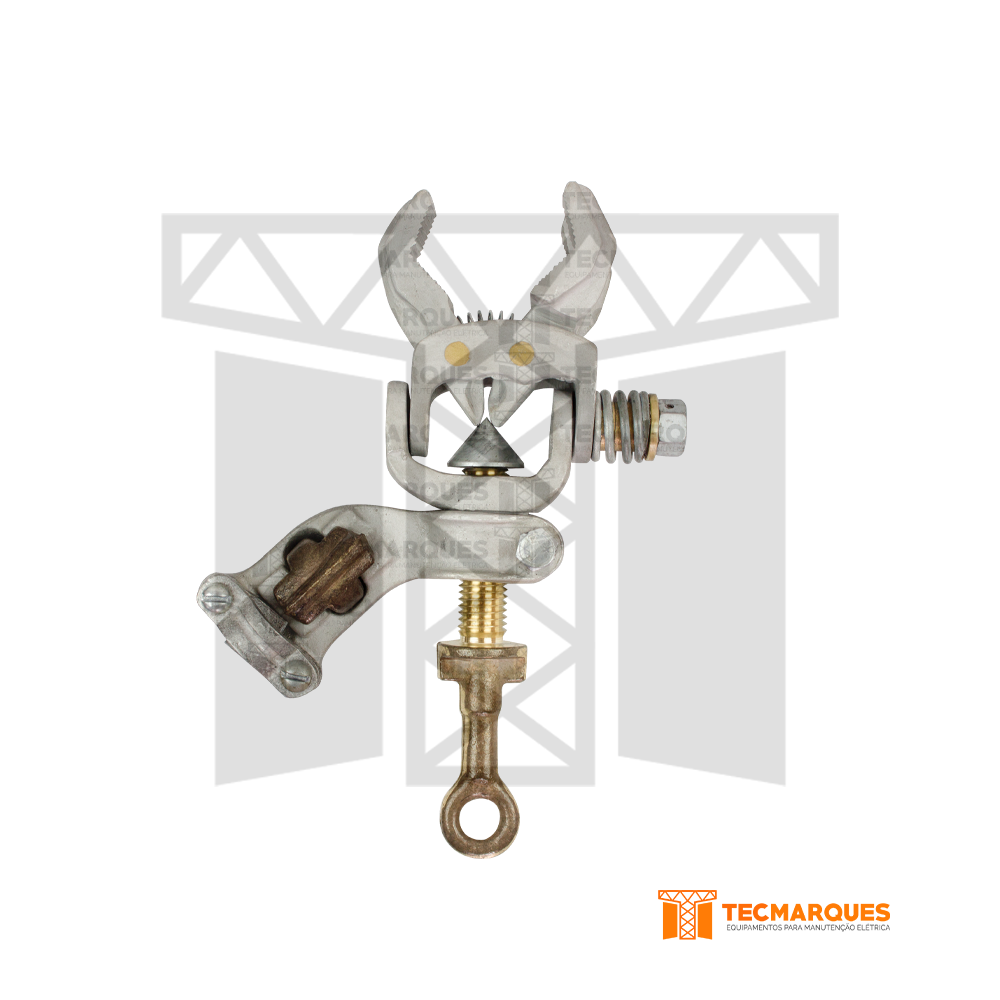

Multi-angle clamp (with small jaw)
Multi-angle clamp (with small jaw)
Multi-angle clamp (with small jaw) from TECMARQUES, for use in high and extra high voltage transmission lines and substations; with fixed jaw small model with adjustment made by spring; aluminum alloy body; serrated jaw; bronze eyescrew type clamping screw; bronze cable plug for plain ferrule. Allows operation at continuous angles up to 75°.
Models
TM12070601
TM12070602
Models
| Reference | Description |
| TM12070601 | Aluminum body; serrated jaw; bronze eyescrew; bronze cable plug through plain ferrule. Allows operation at continuous angles up to 75º, with adjustment made by spring. |
| TM12070602 | Aluminum body; serrated jaw; bronze eyescrew; bronze cable plug through plain ferrule. Locking of pre-adjustable and fixed operating angles, with adjustment made by wing nut. |
TM12070601
| Electrical ratings | |||
| Rated Current (A) | Short-circuit current | ASTM Designation | |
| 400 | 30 Cycles (kA) – 30 | Type – 1 | |
| 60 Cycles (kA) – 23 | Class – B | ||
| Grade – 5 | |||
| Mechanical ratings | |||
| Connection | Cable ferrule (mm²) | Recommended Torque (daN.m) | Approx. Weight (Kg) |
| Maximum – 954 MCM CAA, Ø 30 mm | Maximum -95 | 3.0 | 1.15 |
| Minimum – 2 Cu, Ø 6.5 mm | Minimum – 16 | ||
TM12070602
| Electrical ratings | |||
| Rated Current (A) | Short-circuit current | ASTM Designation | |
| 400 | 30 Cycles (kA) – 30 | Type – 1 | |
| 60 Cycles (kA) – 23 | Class – B | ||
| Grade – 5 | |||
| Mechanical ratings | |||
| Connection | Cable ferrule (mm²) | Recommended Torque (daN.m) | Approx. Weight (Kg) |
| Maximum – 954 MCM CAA, Ø 30 mm | Maximum -95 | 3.0 | 1.90 |
| Minimum – 2 Cu, Ø 6.5 mm | Minimum – 16 | ||
