Grounding Set for Multiplex Network
Grounding Set for Multiplex Network

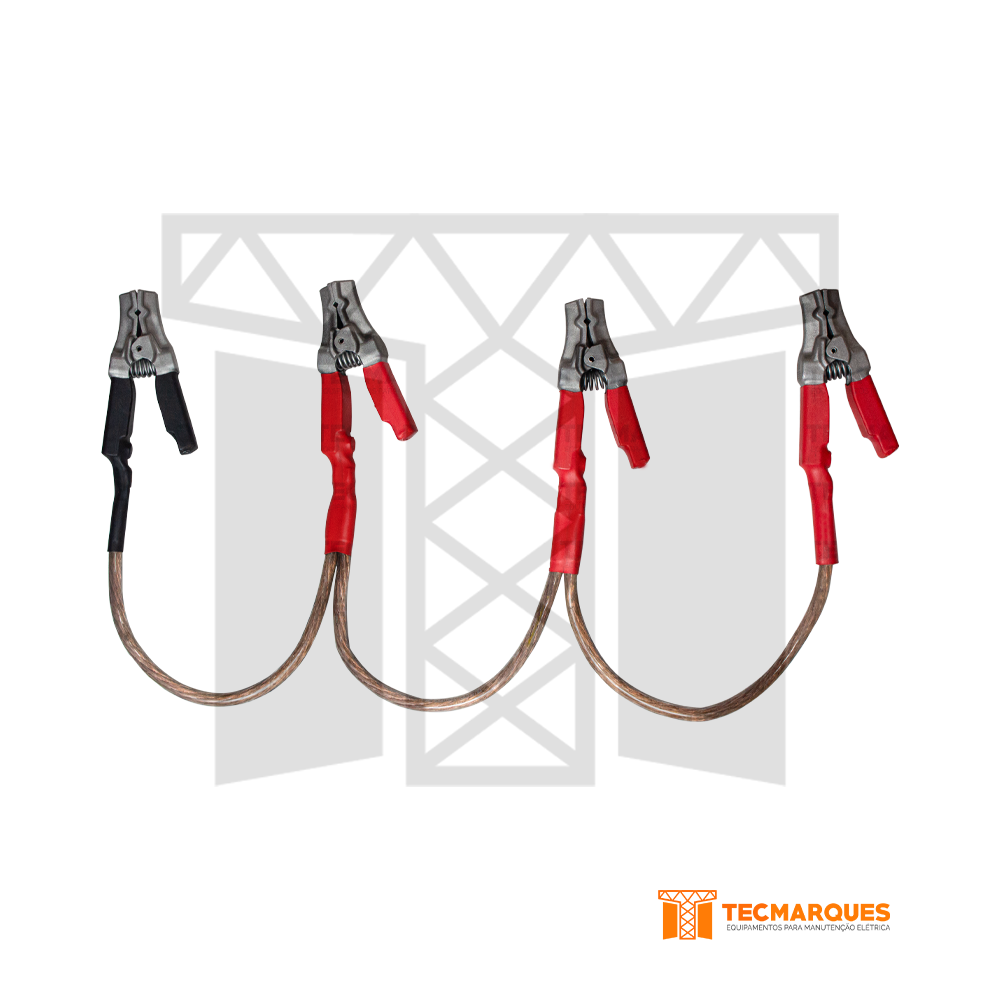

Grounding Set for Multiplex Network. Temporary Grounding Set for Secondary Networks (LV) Insulated with Multiplex Cable and Conventional with Bare Cable.
Models
Specification
Models
| Reference | Description |
| TM12020301 | Temporary grounding set for secondary network (LV) insulated with multiplex and conventional cable with bare cable |
| Maximum short-circuit current | at 30 cycles: 10 kA; at 60 cycles: 7 kA |
Specification
| Item | Reference | Qty | Unit | Description |
| 1 | TM12070314 | 3 | pc | Pressure grounding clamp, in aluminum alloy with red plastic protection on its grip, for the phases |
| 2 | TM12070315 | 1 | pc | Pressure grounding clamp, in aluminum alloy with red plastic protection on its grip, for the neutral |
| 3 | TM12080102 | 1,5 | m | Extra flexible copper cable, nominal section 35 mm², with transparent PVC insulation; consisting of 3 lengths of 0,5 m |
| 4 | – | 6 | pc | Tin-plated copper ferrule for cable 35 mm² |
| 5 | – | 6 | pc | Heat shrink |
| 6 | – | 1 | pc | Bag for storage and transport of the grounding set. |
